Biotage^® MP-TsOH

Rapid Purification of Amines by Catch and Release, Solvent Exchange

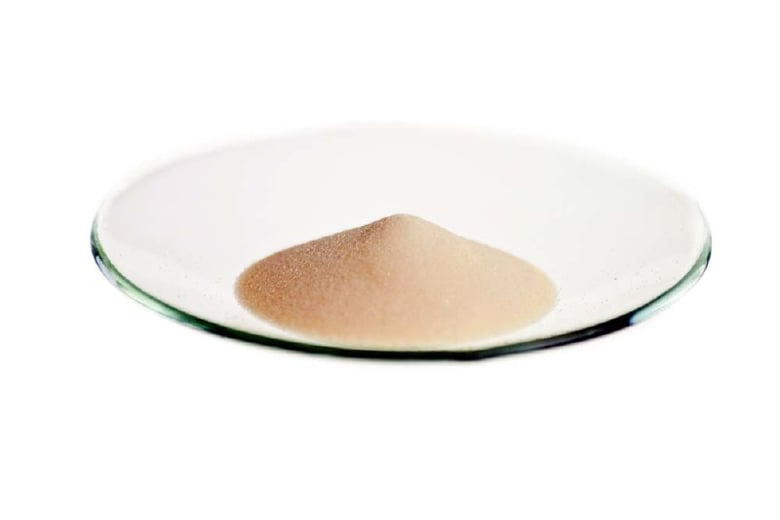

Biotage® MP-TsOH resin is a sulfonated macroporous polystyrene resin and has been optimized for use as a bound reagent or scavenger resin for the synthesis of small molecules. The sulfonic acid groups in MP-TsOH are readily accessible for removal of basic compounds (e.g. primary, secondary, and tertiary amines) by quaternary salt formation.

Request a quote

Biotage® MP-TsOH Product Note

All Documents

Part numbers

Part No.	Description	Pack Size	List Price
800464	Biotage® MP-TsOH, 1 kg	1	2738 USD	Add to quote/cart
800461	Biotage® MP-TsOH, 10 g	1	58 USD	Add to quote/cart
800463	Biotage® MP-TsOH, 100 g	1	271 USD	Add to quote/cart
800462	Biotage® MP-TsOH, 25 g	1	119 USD	Add to quote/cart
800498	Biotage® MP-TsOH, 3 g	1	40 USD	Add to quote/cart

Specifications

RESIN TYPE Highly cross-linked poly(styrene-codivinylbenzene)

CHEMICAL NAME Macroporous polystyrene sulfonic acid

APPLICATION Scavenging and catch-and-release of amines, acid catalysis

COMPATIBLE SOLVENTS DCM (3.0 mL/g), THF (3.1 mL/g), DMF (3.1 mL/g), MeOH (3.05 mL/g)

BULK DENISTY 400g /L

TYPICAL SCAVENGING CONDITIONS Approx. 2–3 equivalents of resin relative to amine, 0.5–1 h, 20 ˚C, or real time amine catch and release applications (seconds / minutes)

STORAGE Cool dry / closed container

SHELF-LIFE / RETEST DATE 5 years / typically annually thereafter depending on process

NOMINAL CAPACITY 3.7 mmol/g

PARTICLE SIZE 375-575 microns

Biotage® MP-TsOH Product Note

Benefits

For over 15 years Biotage has been guiding and leading the industry in supported reagents and scavengers.

MP-TsOH resin is a sulfonated macroporous polystyrene resin that is a resin-bound equivalent of p-toluenesulfonic acid (TsOH). The resin may be used as an equivalent to the strong cation-exchange resin, Amberlyst A-15 (Rohm and Haas). MP-TsOH has been optimized for use as a bound reagent or scavenger resin for the synthesis of small molecules. The sulfonic acid groups in MP-TsOH are readily accessible for removal of basic compounds (e.g. primary, secondary, and tertiary amines) by quartenary salt formation. In addition, MP-TsOH does not contain dark leachable impurities derived from over-oxidation of the polystyrene backbone observed in higher loading sulfonic acid resins

Biotage® MP-TsOH Product Note

All documents

Wide Scope of Applications

In Mitsunobu, Suzuki and Heck reactions, it is often challenging to isolate pure products from the byproducts such as triphenylphosphine oxide and palladium. MP-TsOH columns can be used to purify these products when they contain a basic functional group. The reaction mixture is applied to the column and the product is retained by MP-TsOH. The byproducts can be easily removed with a methanol or DCM wash step. The product can then be released by eluting with 2 M ammonia in methanol.

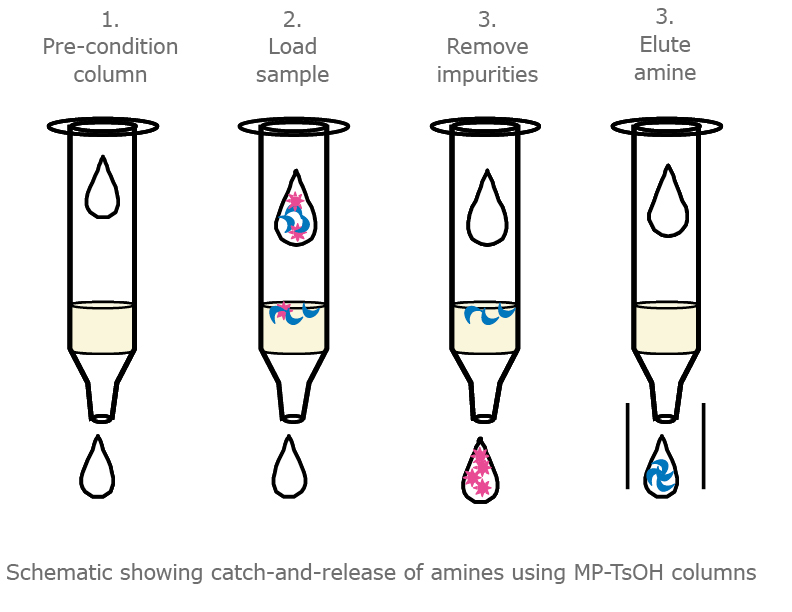

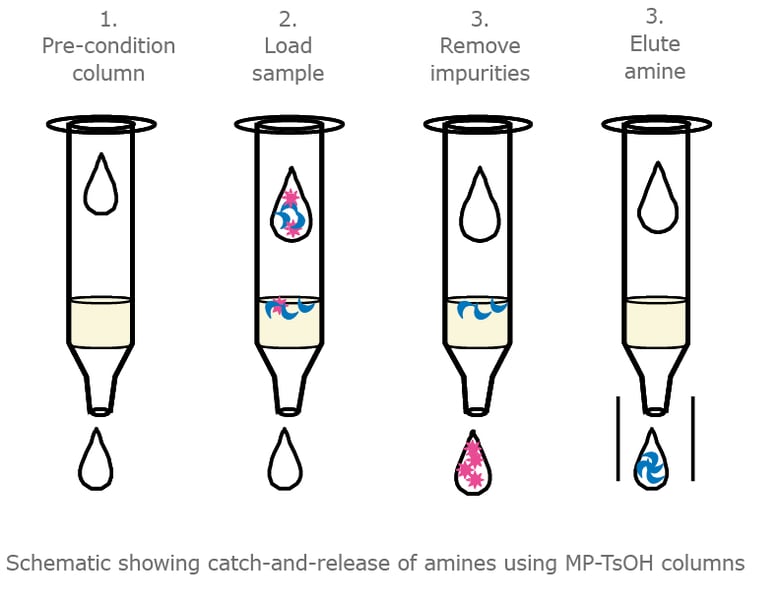

MP-TsOH may also be used in cartridge applications to perform Catch-and-Release of amine derivatives in analogy to silica-derived SCX-2 columns

Learn more

Industry Proven

Key supplier to industry for over 15 years, used in numerous patents and cGMP process campaigns

Learn more

Robust, reliable, scalable and avoiding the need for problematic work-ups

From grams in research through to multi kilogram quantities in production campaigns.

The abrasion-resistant matrix has better handling characteristics and reduced transfer losses compared to other materials.

Learn more

Fully Documented and Quality Assured

Inert, specifically-reactive and deployed to achieve a specific purpose. With lot control, QA / QC documentation, SDS, ISO 9001 / 14001 registration, BSE / TSE statement, shelf-life statement, these resins also support the audit trail.

Learn more
