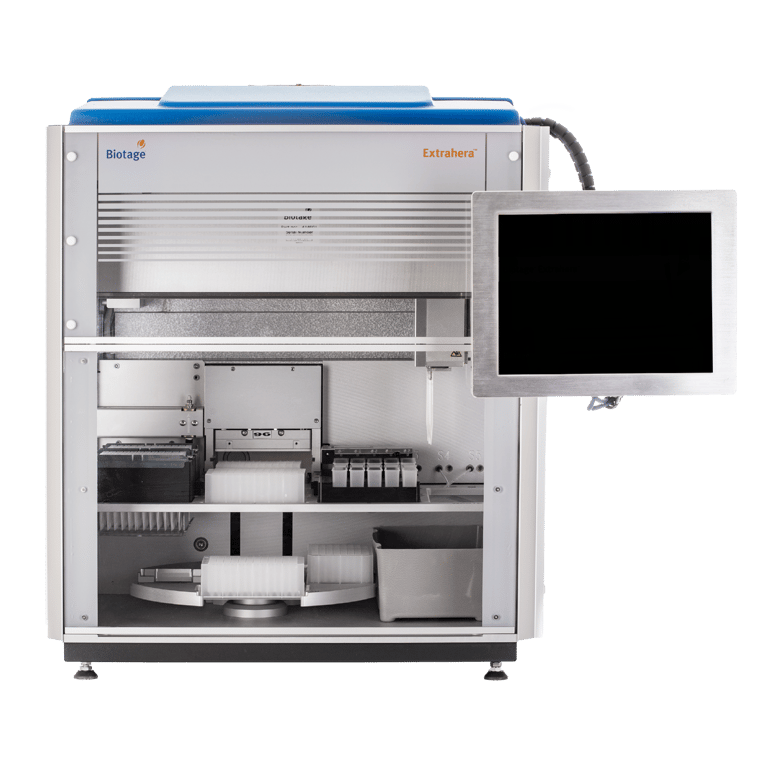

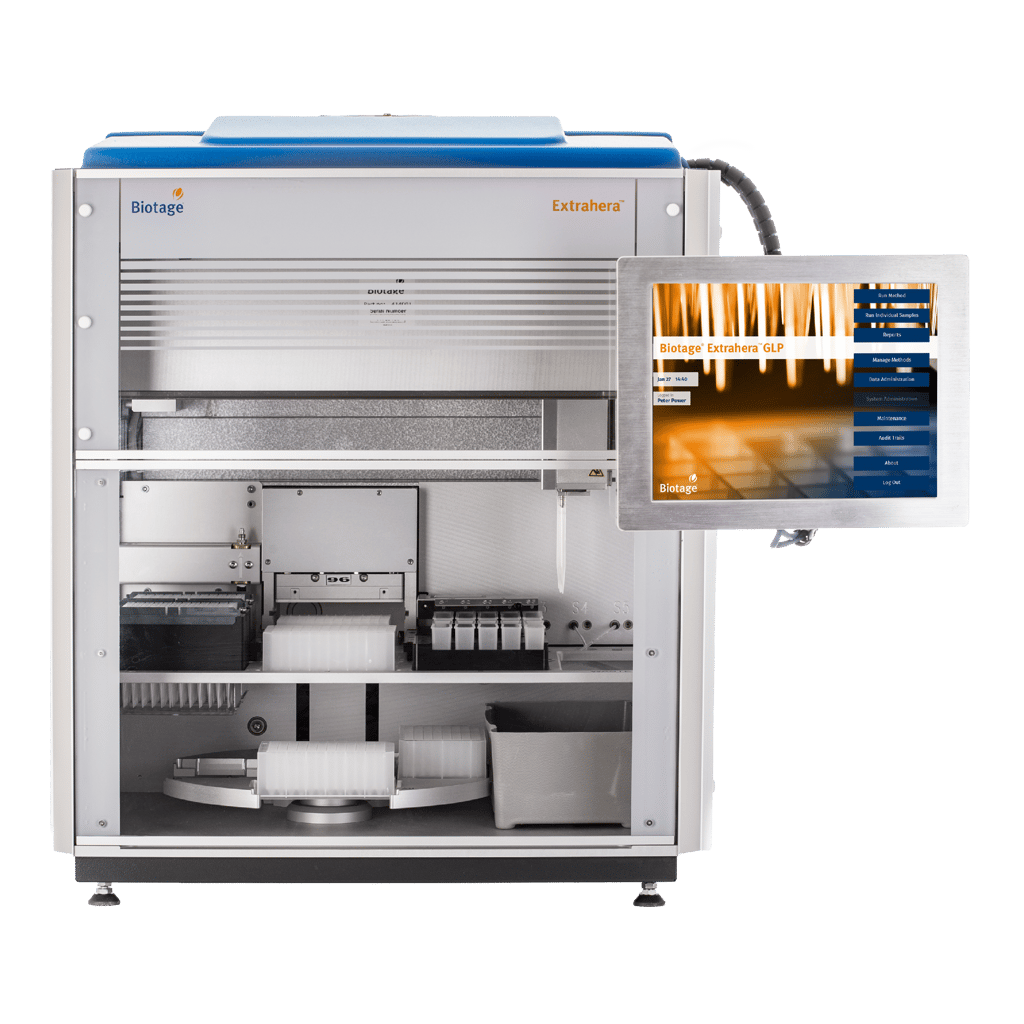

Biotage® Extrahera™ Classic
Automated sample preparation workstation
Automates SPE, SLE, PLD and PPT sample prep workflows and parallel peptide purication. A versatile and cost-effective system for processing both plates and cartridges.
Explore the main benefits of Biotage® Extrahera™ Classic
Consistent and reliable results with positive pressure
Biotage® Extrahera™ Classic uses positive pressure for sample loading and elution, ensuring uniform flow control even with viscous samples. This leads to improved reproducibility, reduced cross-contamination, and higher recovery rates.

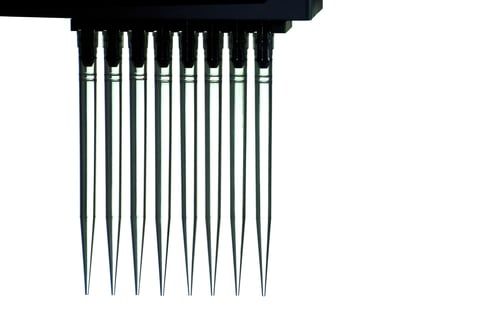

Smart solvent management and tip reuse

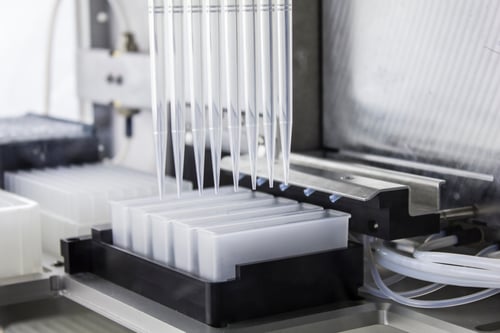

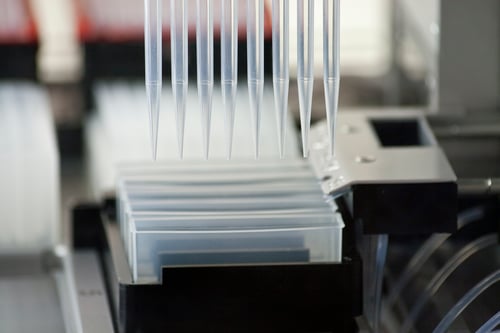

The system features five automatically fed solvent reservoirs with ultrasonic level detection, compatible with all common solvents. Intelligent tip reuse options help reduce waste and lower operating costs, making it more sustainable.

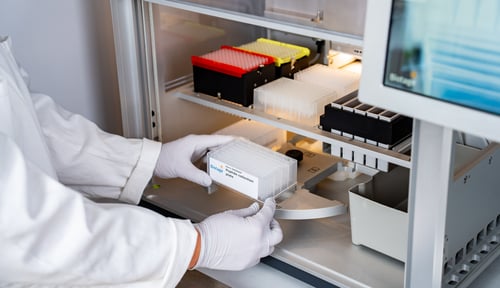

Flexible format options and safe operation

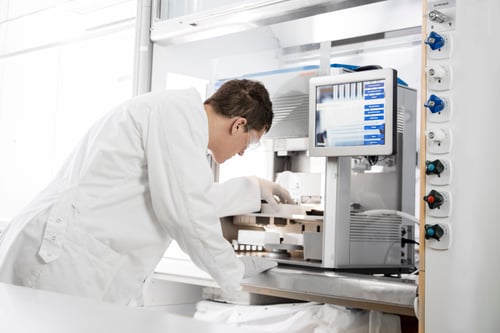

Switching between plate and cartridge formats takes just minutes, allowing labs to adapt quickly to different workflows. The enclosed design and integrated solvent vapor removal enhance safety.
High-throughput parallel peptide purification
The Biotage® Extrahera™ Classic significantly reduces time and solvent usage through a faster, greener and cost-effective parallel peptide purification process with Biotage® PeptiRen and Biotage® PeptiPEC plates.

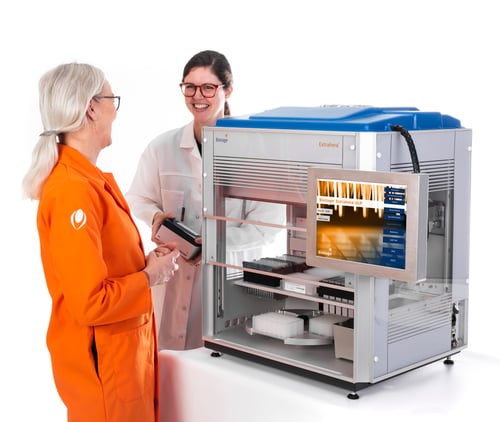

User-friendly software with GLP capabilities

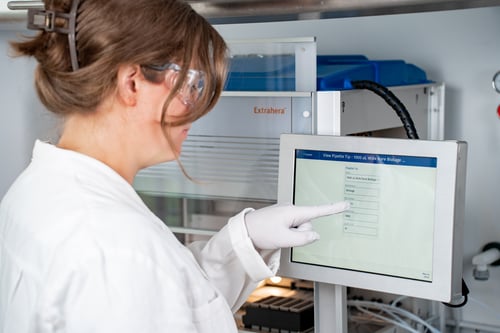

The integrated touchscreen interface simplifies method setup for all users. Optional GLP software adds audit trails and user access control, supporting compliance in regulated environments.
Specifications
-
Solvent capacity
5 auto + 5 manual reservoirs
-
Dimensions
860 × 570 × 730 mm (33.8” x 22.4” x 28.7”) with touchscreen
-
Weight
75 kg (165 lbs.)
-
Interfaces
Touchscreen, USB 2.0, Ethernet
-
Power supply
100 to 240 V, 50/60 Hz
-
Maximum power consumed
300 VA
-
Fuses
T4A at the power inlet (2 required)
-
Temperature
Operating Temperature: 15–32 °C Storage and Transportation Temperature: -25-60 °C -
Humidity
10–95% RH -
Pipetting Specifications
Up to 1000 µL in one aliquot, larger volumes handled in multiple aliquots: At 50 µL: ±2.0% accuracy and 1.0% CV* At 100 µL: ±2.0% accuracy and 1.0% CV* At 500 µL: ±1.5% accuracy and 1.0% CV* At 1000 µL: ±1.0% accuracy and 1.0% CV* *Values derived using a 1000 µL tip. -
Format
96-well extraction plates, 48-well extraction plates, 96-array plates for 1 and 2 mL wells 96-position extraction racks for 1 mL tabless columns (A format)24-position extraction racks for 1, 3, and 6 mL columns (A, B, and C format) -
Disposable tips
1000 µL clear tips -
Pressure unit
0–5 bar positive pressure (0.1 bar increments) -
Plate positions

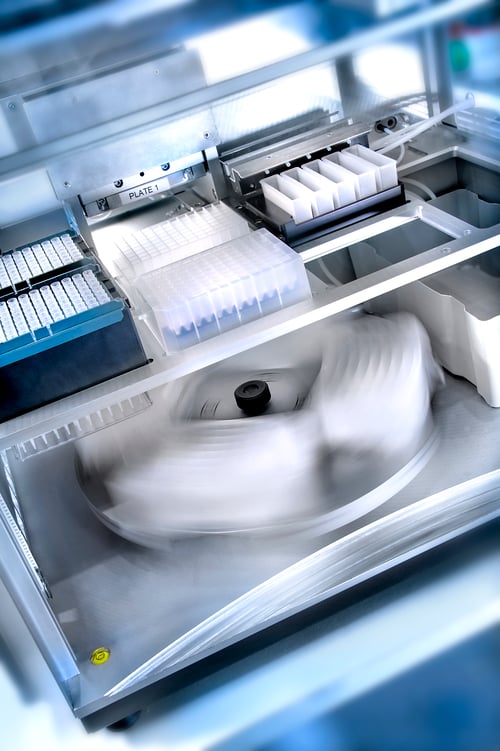

6 position upper deck used for sample, extraction plates, pipette tips and solvents. 4 positions on lower deck carousel for multiple elution and waste. -
Pressurized air supply
>5 L/min (0.18 cubic feet/min), 6 ± 0.2 bar (0.6 ± 0.02 MPa; 87 ± 3 psi) -
Inert gas supply
AIR port requirements: >5 L/min (0.18 cubic feet/min), 6 ± 0.2 bar (0.6 ± 0.02 MPa; 87 ± 3 psi)N2 port requirements: 1 L/min (0.04 cubic feet/min) during processing and 70 L/min (2.5 cubic feet/min) during plate dry, 6 ± 0.2 bar (0.6 ± 0.02 MPa, 87 ± 3 psi) -
Vacuum supply
Partial pressure range: < 500 mbar (50 kPa; 7 psi) Flow rate: ≥ 8.3 L/min (0.29 cubic feet/min) -
Max sound level
65 dB(A) -
Certifications
CE, CSA certified
Resources
-
Download
Product note
Biotage® Extrahera™ precision and accuracy performance (24 position)
-
Download
Product note
Biotage® Extrahera™ precision and accuracy performance (96 well plate)
-
Read article
Customer case
Less labour with automated sample preparation at University of East Anglia
-
Read article
Application note
Comparison of Biotage® Extrahera™ manual sample processing using a vacuum manifold: extraction of NSAIDS from plasma using ISOLUTE® SLE+
-
Read article
Application note
Comparison of Biotage® Extrahera™ vs. manual sample processing using a vacuum manifold: extraction of 25-OH vitamin D from plasma using ISOLUTE® SLE+
-
Read article
Application note
Comparison of Biotage® Extrahera™ vs manual sample processing using a vacuum manifold: extraction of beta blockers from plasma using ISOLUTE® SLE+
