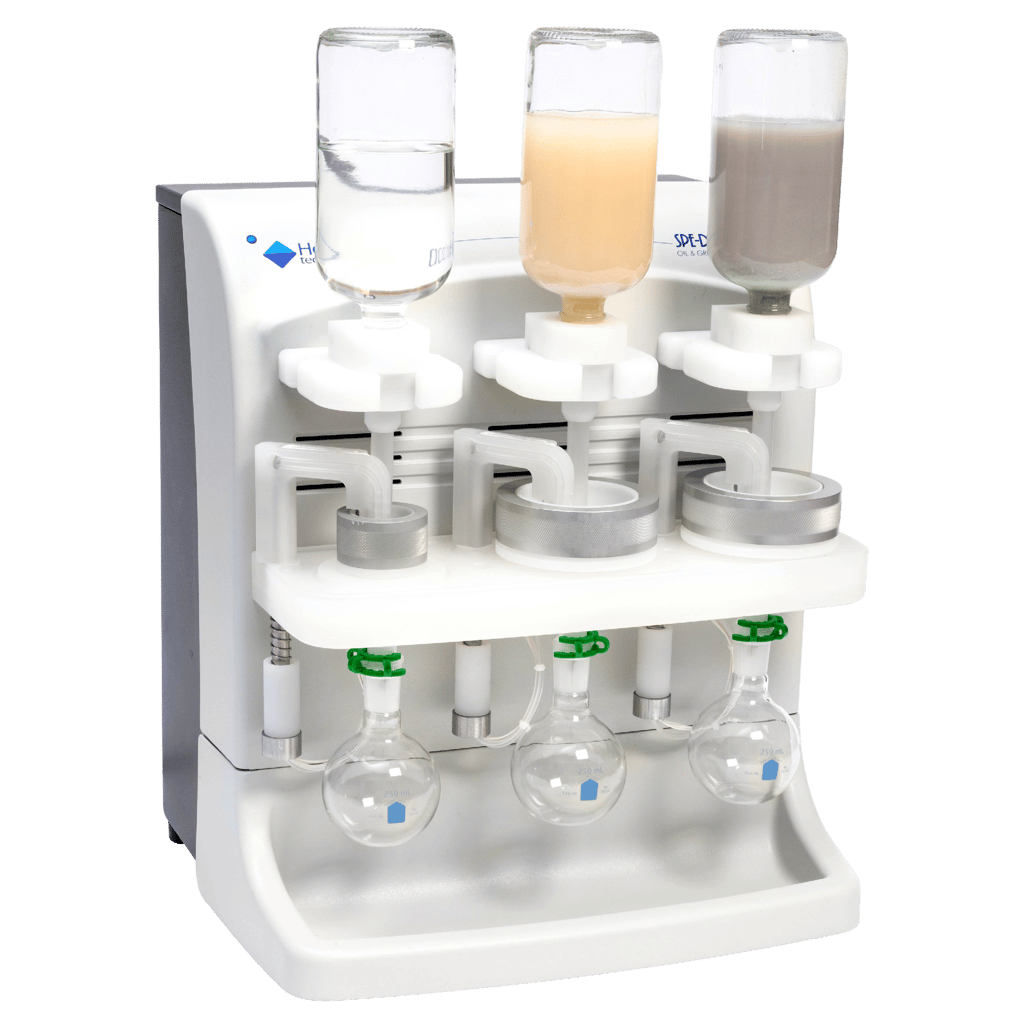

Biotage® Horizon 3100

Automated disk extraction system

Automated oil and grease extraction for wastewater, providing reliable results with less solvent and safer operation.
Request a quote View accessories
Biotage-Horizon-3100

Explore the main benefits of Biotage® Horizon 3100

Biotage-Horizon-3100

Specifications

  • Compliance

    EPA Method 1664A/B, ISO 11349, Standard Methods 5520G

  • Sample volume

    40 mL to 1000 mL

  • Throughput

    3 independent stations, process 3 samples simultaneously each

  • Extraction

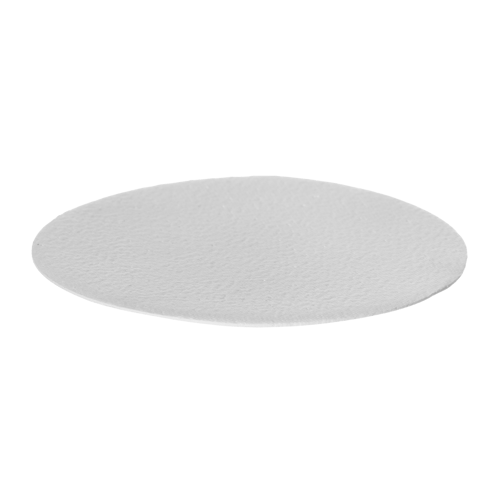

    Automated SPE with Pacific® disks, hexane elution, integrated drying

  • Power supply

    100 to 240 V, 50/60 Hz

  • Maximum power consumed

    100 W

  • Dimensions (WxDxH)

    System:- 475 x 472 x 546 mm (18.7" x 18.6" x 21.5" Controller:- 229 x 165 x 76 mm (9" x 6.5" x 3")

  • Weight

    System:- 26.3 kg (58 lbs) Controller:- 0.7 kg (1.7 lbs)

  • Temperature

    Operating Temperature: 17–28 °C

  • Humidity

    10-70% RH

  • Gas supply requirements

    A clean, dry regulated source of nitrogen is required. The source can be either a tank and regulator, or house nitrogen. The pressure must be a minimum of 60 psi and a maximum of 80 psi.

  • Interface

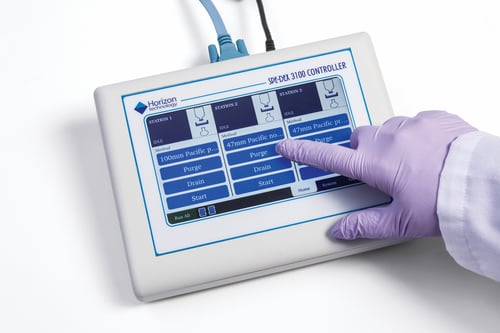

    Membrane Button Controller

Resources

  • Product note

    Biotage® Horizon 3100 oil & grease extractor

    Download

  • Product note

    How solid-phase extraction (SPE) disks differ for hexane extractable material

    Download

  • Application note

    Using the Biotage® Horizon 3100 and in-line Pacific® sodium sulphate drying cartridges for EPA method 1664B

    Read article

Ordering information

Part no.
Name
Pack size
Price
Part no.
SPE-DEX 3100
Name
Biotage® Horizon 3100 Oil & Grease Extractor
Pack size
1
Price
Get a quote
Add to cart
Part no.
SER-3100EXT-EXW
Name
Extended Warranty - 12 Month Extension - Biotage® Horizon 3100
Pack size
1
Price
Get a quote
Add to cart
Part no.
SER-3100EXT-FYMP
Name
First Year Maintenance Package - Biotage® Horizon 3100
Pack size
1
Price
Get a quote
Add to cart
Part no.
SER-3100EXT-IN
Name
Installation and Familiarization - Biotage® Horizon 3100
Pack size
1
Price
Get a quote
Add to cart

Related products

Speed-Vap® | Automated solvent evaporation system

Speed-Vap® provides safe and fast evaporation of solvent for oil and grease extractions.

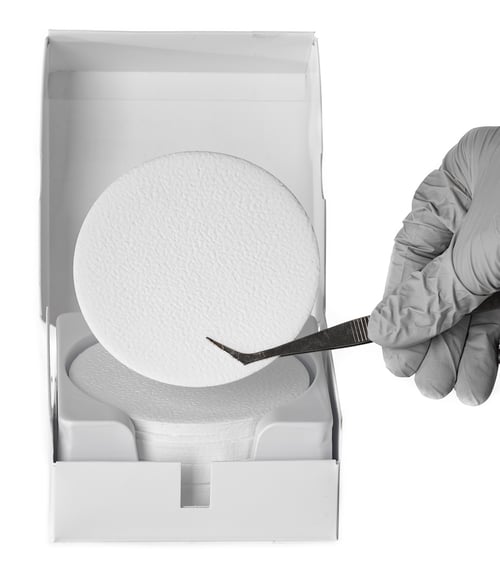

Pacific® | Extraction disks, pre-filters and in-line drying

Fast flow rates with dirty samples for excellent recovery and precision during hexane extractable material extraction.

ISOLUTE® Sodium Sulphate Drying Cartridge | Prepacked in-line drying

Efficient in-line drying of organic solvents by placement underneath of SPE cartridges during elution.

Biotage® VacMaster™ | Vacuum manifolds

Complete vacuum processing solutions for SPE and filtration, processing formats from single disk, to cartridges and high-throughput 96-well plates.
