Biotage® FlashVac
Cartridge processing station
Parallel processing of up to 10 or 20 ISOLUTE® cartridges. Inert, corrosion-resistant construction with flexible flow control.

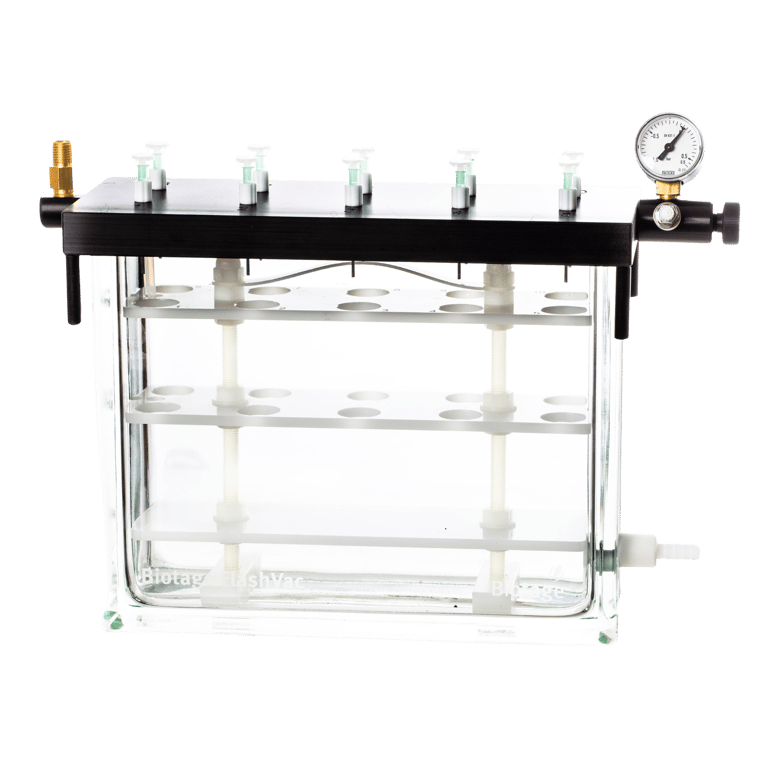

Biotage® FlashVac cartridge processing stations process up to 10 or 20 ISOLUTE® work-up cartridges in parallel, handling volumes from 3–150 mL and sample masses from 1 mg to 70 g. They support catch & release, scavenging, SPE, filtration, and off-line sample loading prior to flash chromatography.

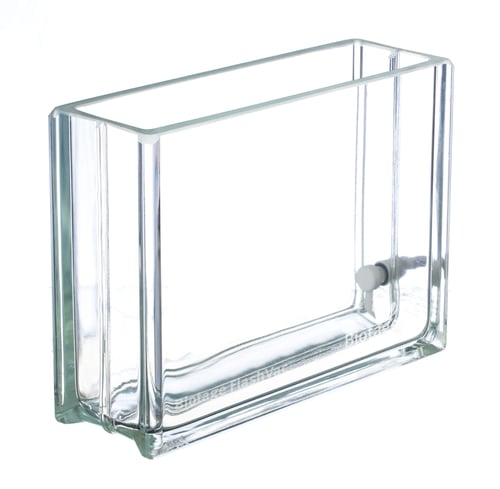

Constructed from inert glass and high-density polyethylene, the manifolds resist common solvents, acids, and bases. Vacuum controls are positioned away from solvent flow to prevent corrosion, and individual flow control is possible with optional PTFE stopcocks or stopcock/needle units. The station accommodates 19- and 25-mm collection tubes, up to 150 mm in length. Other optional accessories include additional rack plates, and Biotage® FlashVac-compatible polypropylene columns.
Trap kit
A solvent-resistant, vacuum-safe trap for Biotage® FlashVac-10 and -20 manifolds. Positioned between the manifold and vacuum source, it collects solvents aspirated through SPE or filtration cartridges during workup.

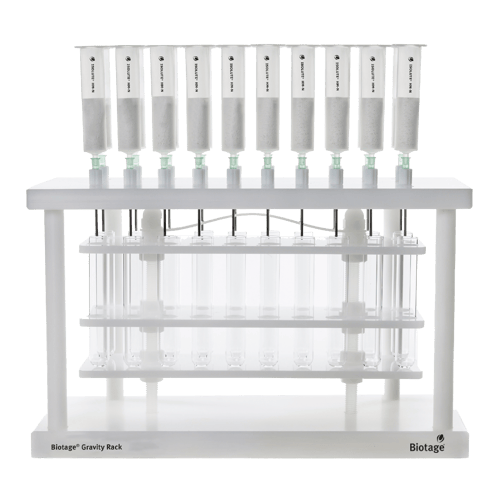

Gravity rack
A 20-port, freestanding rack for gravity-flow processing, ideal for ISOLUTE® HM-N cartridges and ISOLUTE® phase separators. Processes up to 20 × 25 mL or 10 × 70 mL cartridges simultaneously. Constructed from polyethylene, it is compatible with all ISOLUTE® cartridge formats and 16- or 19-mm collection tubes. The two-part design prevents cross-contamination, and stainless-steel needles are supplied as standard.
Ordering information
Related products

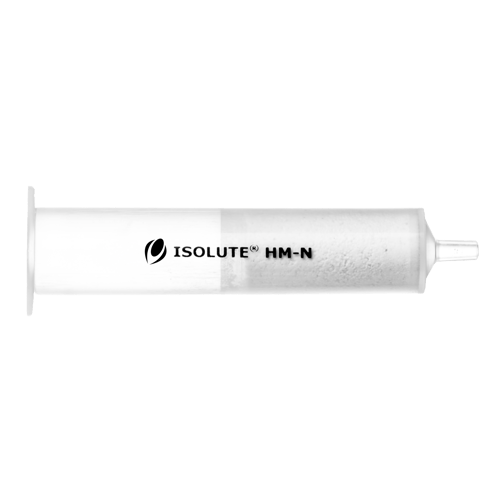

ISOLUTE® HM-N | Work-up support to eliminate emulsion formation
Rapid aqueous work-up and removal of water soluble impurities from reaction mixtures.
ISOLUTE® Phase separator | Disposable cartridges and plates
ISOLUTE® Phase Separators - the latest innovation in phase separation, more efficient than traditional glass separating funnels.
ISOLUTE® SCX-2 | Solid-phase extraction cartridges and plates
A strong cation exchange sorbent with minimal non-polar character, used to extract basic analytes from aqueous samples.

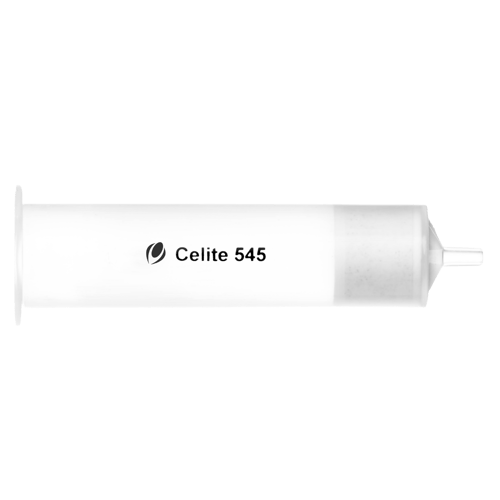

Celite | Work-up filtration cartridge for reaction clean-up
Celite cartridges simplify first-stage reaction work-up by removing tar and catalysts efficiently, improving safety and reducing cross-contamination.
