Biotage® Liquid Level Sensor
Solvent management solution for flash chromatography

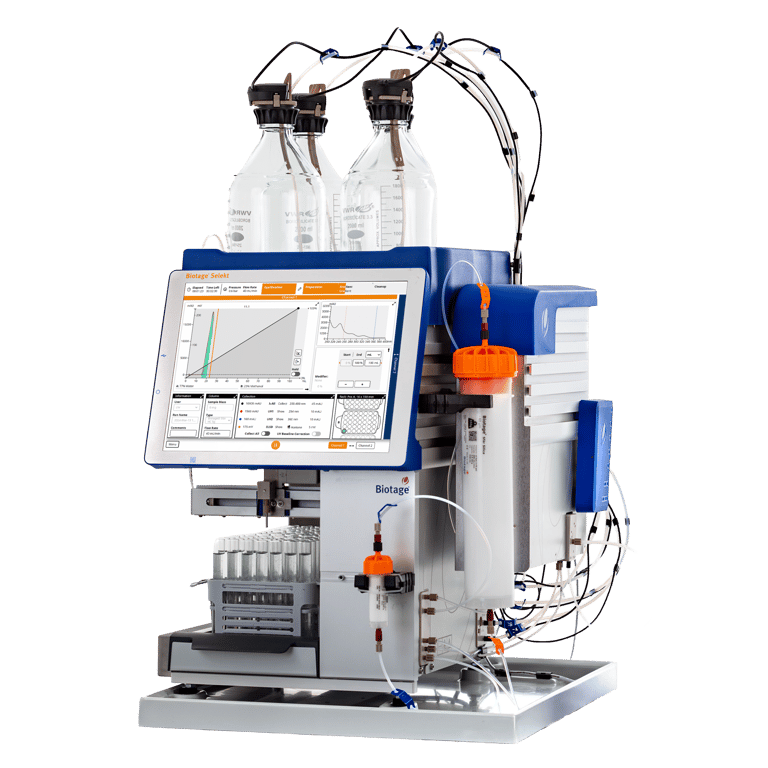

Solvent and waste management made simple for flash chromatography - fully compatible with Biotage® Selekt systems.
Real-time solvent and waste monitoring

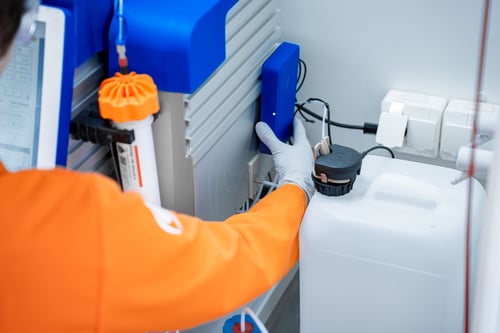

Biotage® Liquid Level Sensor continuously monitors your solvent and waste volumes, giving you full control over liquid handling from start to finish. You will know the required solvent and expected waste volumes before each run, with real-time monitoring throughout the process.
Safe liquid handling

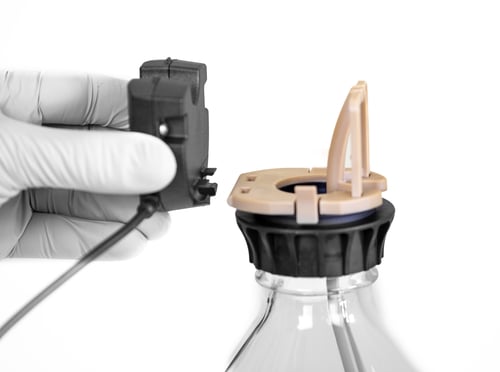

Prevent failed runs with Biotage® Liquid Level Sensor. It automatically pauses the process and alerts you when solvent or waste reservoirs need attention. The secure tube holder keeps the solvent filter at the reservoir bottom and the waste line in place, minimizing the risk of air aspiration or spills.
Workflow flexibility
Enjoy true plug-and-play convenience with pre-calibrated reservoirs or use standard and custom sizes with the Universal Cap Adapter. Calibration files can be transferred between systems, so you only need to calibrate each reservoir once.
Specifications
-
Dimensions
Footprint: (W x D) 335/550 mm x 393 mm (13.2/21.7” x 15.5”). The width depends on using one or two collection trays. Height: 545 mm (21.5”) excluding secondary solvent containment.
-
Materials
PEEK (tube holder), PPS (sensor house, cap, and universal cap adapter), PP (hub), TPE partly coated with PO (sensor cable)
-
Ambient temperature
Operating: 15°C to 32°C (59°F to 90°F). Storage and transportation: 25°C to 60°C (-13°F to 140°F).
-
Humidity
20% to 90% RH (non-condensing).
-
Location
Indoor use only. No wet locations. Biotage® Liquid Level Sensor must be placed on a stable, and flat level surface.
-
Altitude
Operation: up to 2000 m (6562 ft).
-
Pollution degree
The Biotage® Liquid Level Sensor kit shall be installed and used in a level 2 environment in accordance with EN 60664-1.
-
Electrical supply
24 V -
Max power consumed
500 mA -
Weight
Hub: 133.5 g (0.29 lbs) Sensor: 64.2 g (0.14 lbs) -
Dimensions
Hub: 157 x 85 x 32 mm (6.2” x 3.3” x 1.3”) Sensor: 63 x 55 x 27 mm (2.5” x 2.2” x 1.1”) -
IP classification
IP54 for the sensor -
RF type (Sensor)
Transceiver -
Operating frequency range
57 to 64 GHz -
Radar peak output power
18 dBm -
Sensor cable length
1.8 m (70.9”)
