Biotage® Selekt Enkel

Automated flash chromatography system for small-scale research

Optimized for routine purification in drug discovery and research laboratories.
Request a quote View accessories

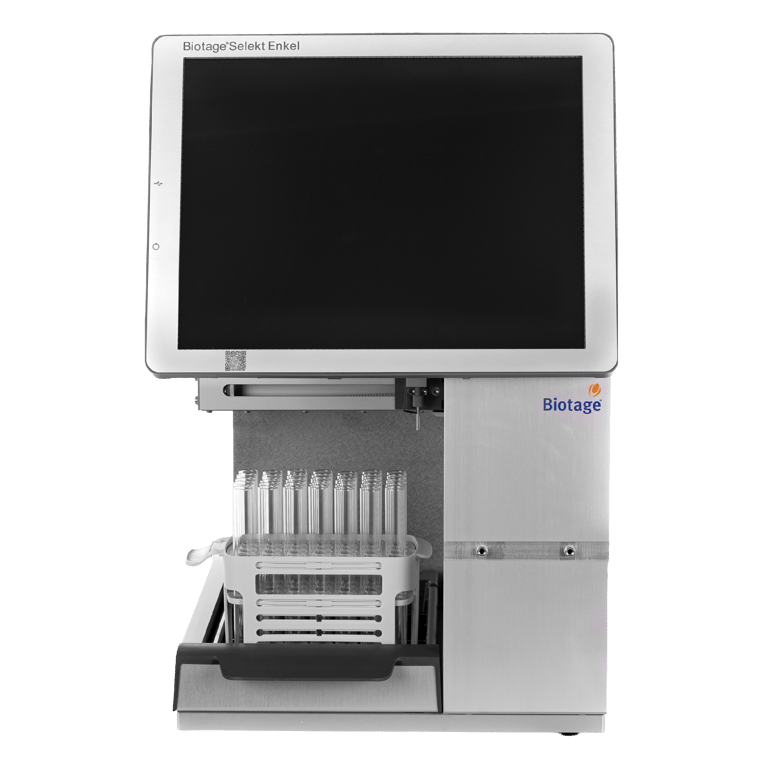

Biotage-Selekt-Enkel-portrait-no-columns-no-sw

Explore the main benefits of Biotage® Selekt Enkel

Biotage® Selekt Enkel is an automated flash chromatography system for small-scale, routine purification in drug discovery and research labs.

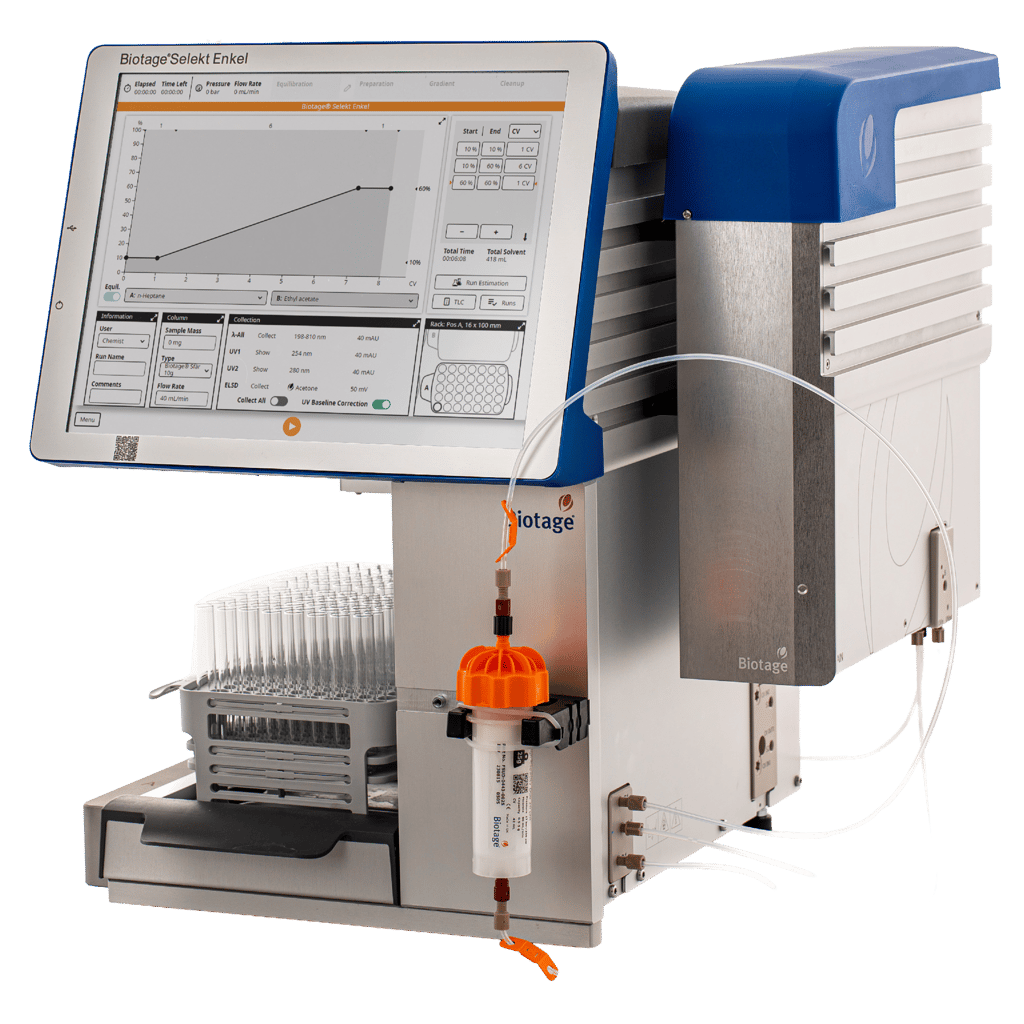

biotage-selekt-enkel-portrait-elsd-sfar-side-view

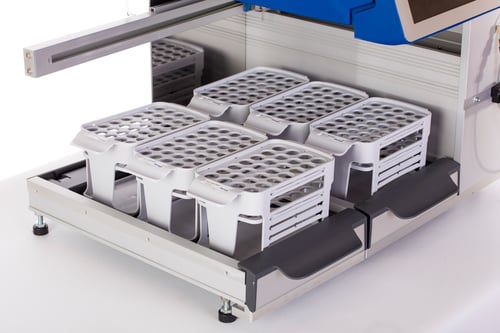

Biotage-Selekt-Enkel-double-Bed

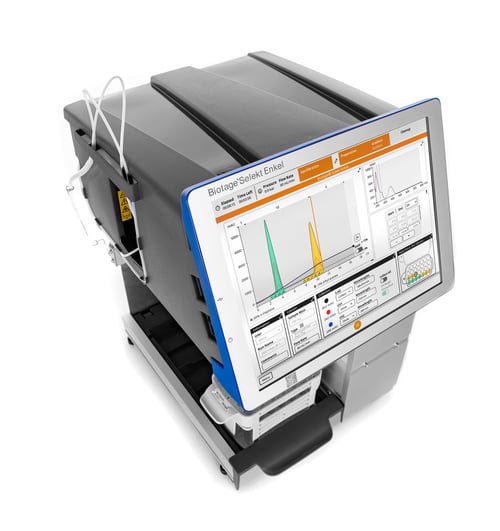

Biotage-Selekt-Enkel-Portrait-above-with-screen

Specifications

  • Flow rate range

    1–150 mL/min, in 1 mL/min increments.

  • Column channels

    One

  • Max number of fractions

    144 fractions with no rack change (288 with two collection trays) using 13 x 100 mm racks.

  • Max total fraction volume

    3,840 mL with no rack change (7,680 mL with two collection trays), 480 mL bottle racks.

  • Location

    A laboratory fume hood with the capacity to handle leakage of solvents and provide suitable airflow to prevent the build-up of flammable vapors.

  • Ambient temperature

    Operating: 15–32 °C (59–90 °F).

    Storage and transportation: -25–60 °C (-13–140 °F).

  • Humidity

    20–95% RH (non-condensing).

  • Altitude

    Operation: up to 2000 m above sea level.

  • Pollution degree

    The system shall be installed in a level 2 environment in accordance with EN 60664-1.

  • Electrical supply

    100–127, 220–240 VAC, 50/60 Hz. Connect only to a grounded outlet.

  • Fuses

    T4A-250 VAC, P/N 411916 (2 required).

  • Max power consumed

    300 VA.

  • Fluid path (wetted) materials

    The wetted parts of the system consist of stainless steel, FFKM, PEEK, PP, PE, FEP, PTFE, silica, carbon fiber filled PTFE, and fused silica, which are not affected by common chromatographic solvents.

  • Weight

    23–25 kg (50–54 lbs.) depending on the system configuration

  • Dimensions

    Footprint: (W x D) 335/550 mm x 393 mm (13.2/21.7” x 15.5”).

    The width depends on using one or two collection trays. Height: 545 mm (21.5”) excluding secondary solvent containment.

  • Interfaces

    15.0” (1024 x 768 px) solvent stable TFT LCD touch screen.

  • Ports

    Ethernet port, 4 USB ports, 2 D-Sub 9-pin ports, and AUX port.

  • Data entry

    Touchscreen or USB connection to mouse/keyboard.

  • Software

    UNIX based Java interface with full on-screen QWERTY keyboard.

  • Certification

    CE and FCC marked. CB and NRTL certified.

  • Solvent supply

    Two solvent lines. A maximum of 4 x 5 liter reservoirs on the optional secondary solvent containment. Larger reservoirs than 5 liters must be placed elsewhere.

    Note: To be compliant with the secondary containment regulations, do not use containers larger than 4 liters.

  • Rack types

    13 x 100 mm, 16 x 100 mm, 16 x 150 mm, 18 x 150 mm, 25 x 150 mm, 120 mL, 240 mL, and 480 mL.

  • Internal detector wavelength

    200–400 nm (UV). Amplitude range: 0 to 6400 mAU (Absorbance Units); accuracy of ±5 mAU.

  • Pressure range

    0–15 bar (0–1500 kPa; 0–217 psi).

  • Gradient precision

    ±2%.

Resources

  • Brochure

    Biotage® Sfär columns from the pioneers of flash purification

    Download

  • Customer cases

    Trying Biotage® Selekt Enkel at Charleston college

    Read article

  • Customer cases

    Biotage® Selekt Enkel at the University of East Anglia

    Read article

  • White paper

    Connectivity and digitisation

    Read article

Ordering information

Part no.
Name
Pack size
Price
Part no.
SER-SEL-WPL
Name
5 Year Warranty Plan - Biotage® Selekt
Pack size
1
Price
Get a quote
Add to cart
Part no.
417502SP
Name
Biotage® Selekt Enkel Extended Bed Upgrade Kit
Pack size
1
Price
5229 USD
Add to cart
Part no.
417501SP
Name
Biotage® Selekt Enkel Network Upgrade Kit
Pack size
1
Price
3887 USD
Add to cart
Part no.
417504SP
Name
Biotage® Selekt Enkel RFID Upgrade Kit
Pack size
1
Price
3887 USD
Add to cart
Part no.
SEL-ESV
Name
Biotage® Selekt Enkel, One Channel, Single Collection Bed, UV Detector - No power cables included
Pack size
1
Price
Get a quote
Add to cart
Part no.
SER-SEL-EXW
Name
Extended Warranty - Biotage® Selekt
Pack size
1
Price
Get a quote
Add to cart
Part no.
SER-SEL-FYMP
Name
First Year Maintenance Plan - Biotage® Selekt
Pack size
1
Price
Get a quote
Add to cart
Part no.
SER-SEL-INSTALL
Name
Installation & Familiarization - Biotage® Selekt Systems
Pack size
1
Price
Get a quote
Add to cart
