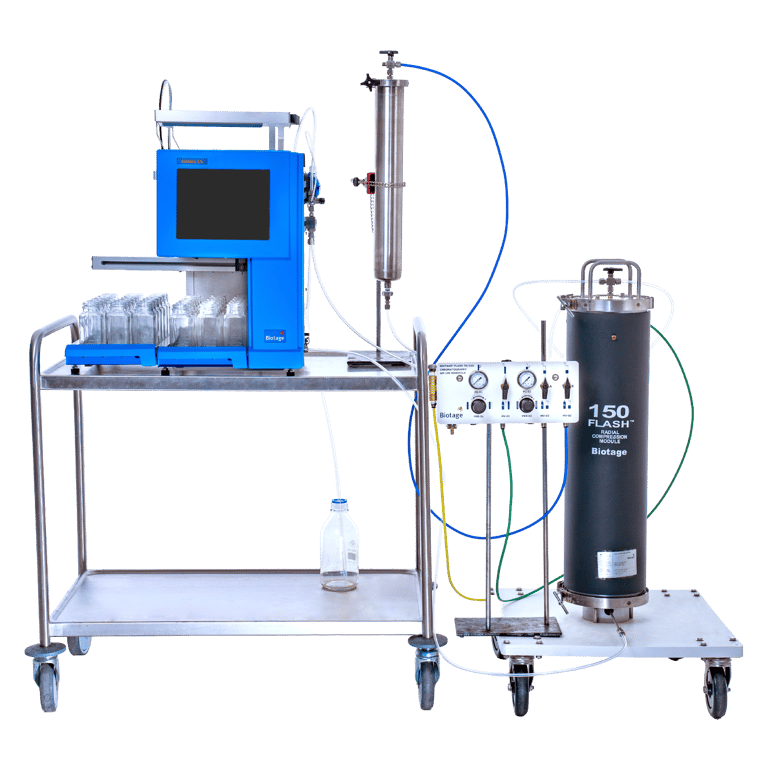

Isolera™ LS 150
Fully automated flash chromatography system for development and production
A robust and reliable flash purification system designed to bridge the gap between lab scale and production.
Scale up with confidence

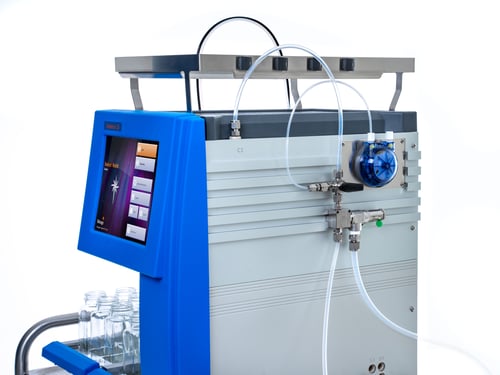

Intuitive software for full control
The large touchscreen interface offers access to advanced software, enabling automated fraction collection, gradient equilibration, sample peak visualization in 3D, and other key features that enhance productivity and reproducibility.
Flexible scale-up
Prepacked columns ranging from 50 g to 8 kg ensure a safe and efficient scale-up. The system supports easy conversion to step and isocratic gradients for larger columns, along with scalable method development from TLC plates to flash chromatography columns for added flexibility.
Specifications
-
Weight
42-46 kg (93-102 lbs) depending on the system configuration
-
Dimensions
Isolera™ LS 150: 577 x 497 x 596 mm (22.7" x 19.6" x 23.5")
Flash 150 column: 56 x 56 x 106 mm(22" x 22" x 42") -
Flow rate range
50 – 500 mL/min
-
Fraction collection modes
Volume, threshold, threshold with volume, low slope, medium slope
-
Solvent delivery
Two constant volume (11-mL) electric HPFC pumps
-
Power requirements
100 – 240 VAC, 50/60 Hz, 4.0 A
-
Collection vessels
Test tubes (13, 16, 18, and 25 mm) and bottles (120 mL, 240 mL, 480mL)
-
UV detection
200-800 nm for Isolera™ LS 150 system. The upgrade kit is retrofittable to 200-400 nm or to 200-800 nm -
UV collection modes
Single/dual/λ-All wavelengths (variable UV and UV-VIS)
