UV monitor for Biotage® Flash 150 and 400

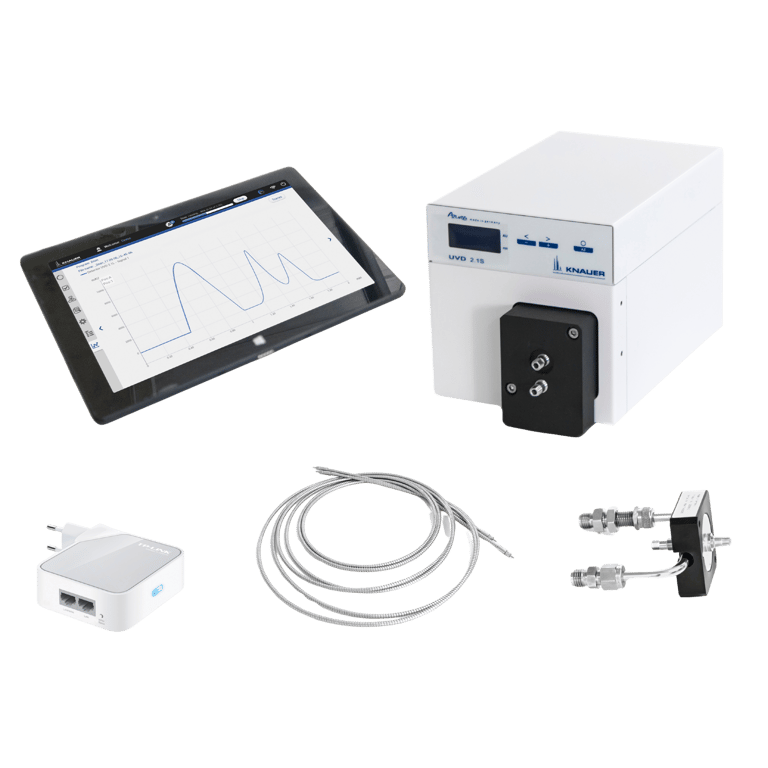

Fiber optic UV monitor kit
Reduce process risk, increase confidence
Efficient, safer purification
Specifications
-
Drift and linearity
4.0 x 10-4 AU/h at 254 nm (fiber optics version) (ASTM E1657-98), linearity > 2.0 AU at 270 nm (ASTM E1657-98)
-
Wavelength range
190–500 nm +/- 3nm, precision 0.7 nm (ASTM E1657-98)
-

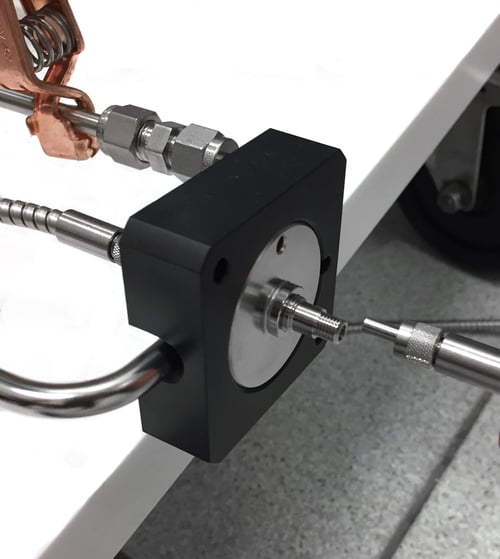

Flow cell
Biotage® Flash 150: Path length 0.5 / 1.25 / 2 mm, volume 1.7 /4.3 / 6.8 μl, material SS, max flow rate 10 L/min, max pressure 200 bar
Biotage® Flash 400: Path length 0.5 / 1.25 / 2 mm, material SS, max flow rate 10 L/min, max pressure 80 bar
-
Weight
1.5 Kg -
Operating conditions
4–40 °C, 39.2–104 °F, humidity <90%, non-condensing
-
Dimensions
Modular system, see specific parts for more information, base unit: 121 × 129 × 187 mm (W x H x D) -
Power requirements
External: Input 100 - 240 V, output 24 V DC, 60 W -
Control
Analog output 1 x ± 2.5 V scalable, 20 bit, max data rate 50 Hz (LAN), 20 Hz (Analog), 10 Hz (RS-232), input Autozero, Start (IN), Error (either IN or OUT), 0–10 V Analog INDigital: RS-232; LAN; remote connector. Analog: wavelength control. Manual: front panel
Ordering information
