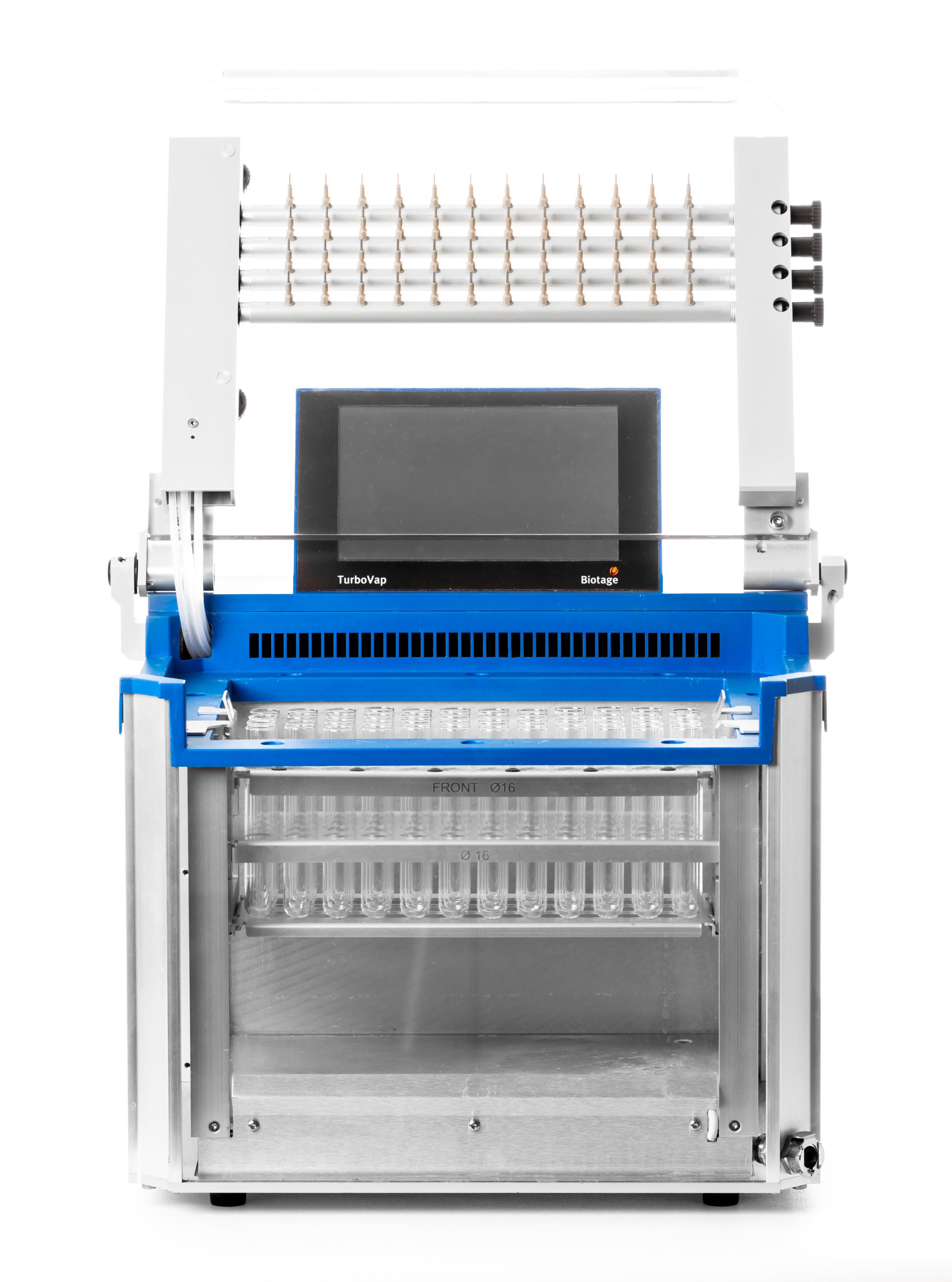

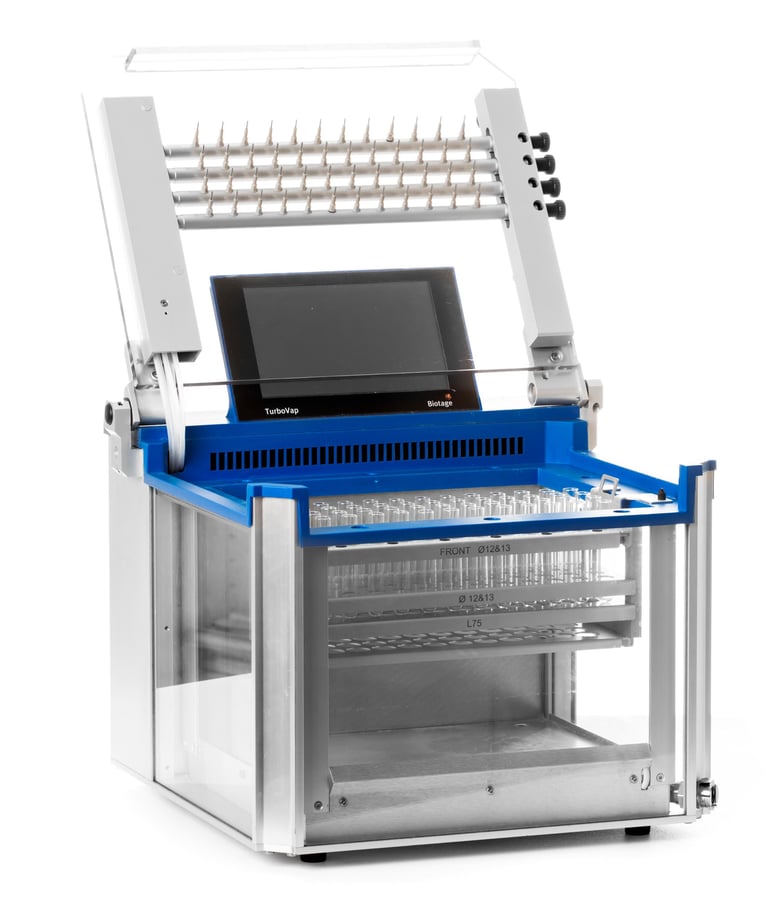

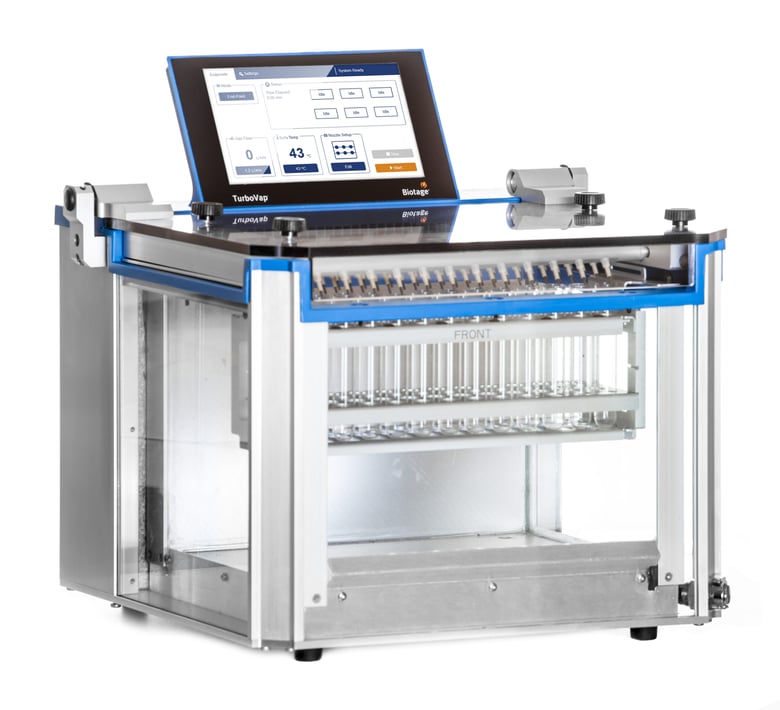

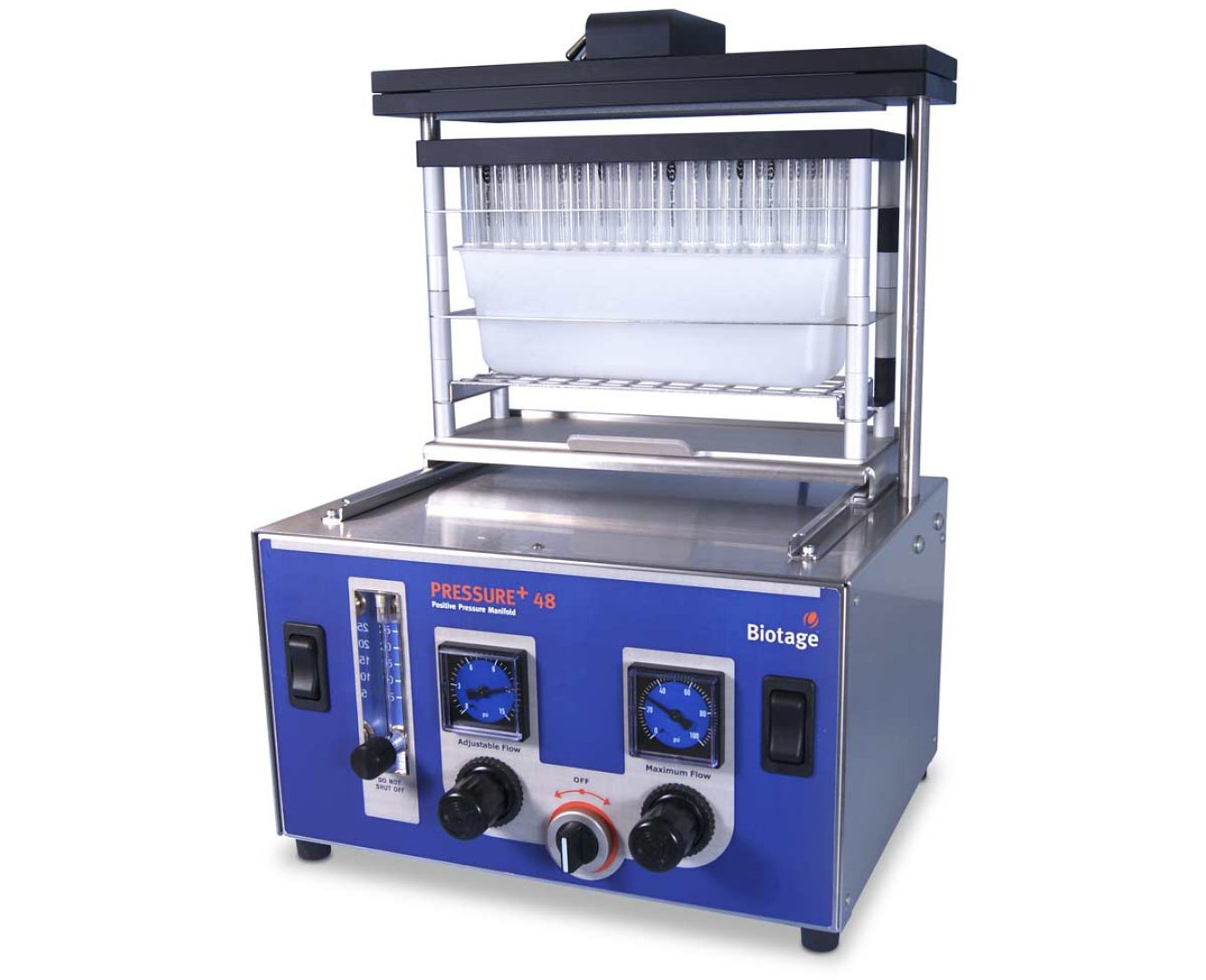

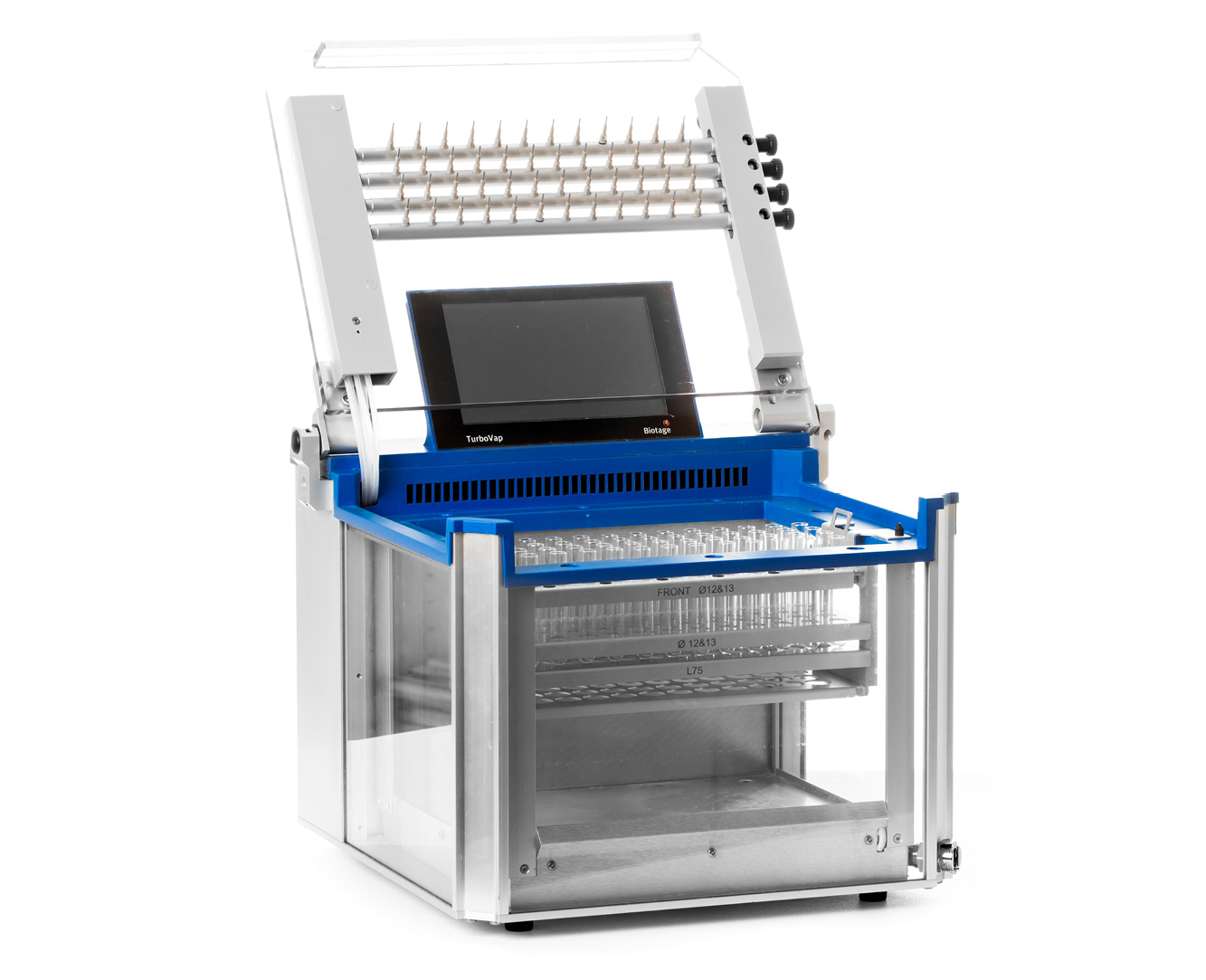

TurboVap® P+ manifold and racks allow evaporation of up to 48 samples that have been processed using a Biotage® PRESSURE+ 48 Positive Pressure Manifold. The TurboVap P+ manifold and racks are a brand new addition to the TurboVap family and are designed to streamline a customers workflow following sample processing on a PRESSURE+ 48 unit.
Samples are processed as normal on the PRESSURE+ 48 unit but by using these unique collection racks can be transferred immediately into the TurboVap P+ for evaporation.
The new TurboVap® is designed around a common chassis with interchangeable accessories, allowing users to switch quickly between configurations for a wide range of sample sizes and applications.
The TurboVap® P+ allows an optimized workflow for samples processed on Biotage® PRESSURE+ 48 by negating movement of vials between racks. The new collection racks on PRESSURE+ 48 can be placed directly into the TurboVap P+ for evaporation of up to 48 samples.
Flow gradients within a method means that gas flow can be gradually increased as the evaporation cycle progresses. The low flow rate early in the process promotes gradual evaporation. As the sample evaporates and more space is available in the tube/vial, the gas flow can be increased to further speed evaporation. Evaporation proceeds optimally, avoiding splashing and eliminating the possibility of cross contamination.
Individual removable nozzles ensure that cleaning and maintenance in the instance of a blockage is easy and straightforward. Replacement takes a matter of seconds. Simplifying maintenance and reducing operating costs.
Improved visibility with glass sides and see through lid means that sample visibility during evaporation and method set-up is no longer an issue. Color changing lighting ensures you know when sample evaporation is complete.
Color touch screen operation. Provides easy set-up and optimization of methods. Once the method is running, a clearly visible display screen and adjustable-volume alarm offer true walk-away operation, providing visual and an audible alert when a run has finished.
Easy water bath management. The drain port on system ensures that emptying and filling of the water bath is quick and trouble free. Makes it easy to change the heating bath water for system cleanliness without having to carry the unit to a sink (as with other evaporators)
Compact system with small footprint, you can fit three new TurboVap units in the space occupied by two classic style units maximizing valuable laboratory space.
Biotage offers a variety of service agreements to choose from.
Part No. | Description |
---|---|
415539 | TurboVap® P+ |
TurboVap® P+
