The Biotage® Flash 150 system supports batch purification up to 80% faster than traditional glass columns. Flash 150 is a simple, robust and reliable system, containing everything needed for large or industrial scale separations.
Flash 150 platforms are the industry standard for mid-scale reliable large scale flash purifications. Our broad selection of columns available in 2.5 Kg and 5 Kg sizes enable professionals to choose the solution which best suits their purification needs. Sample sizes up to 500 g are easily possible using this purification platform.

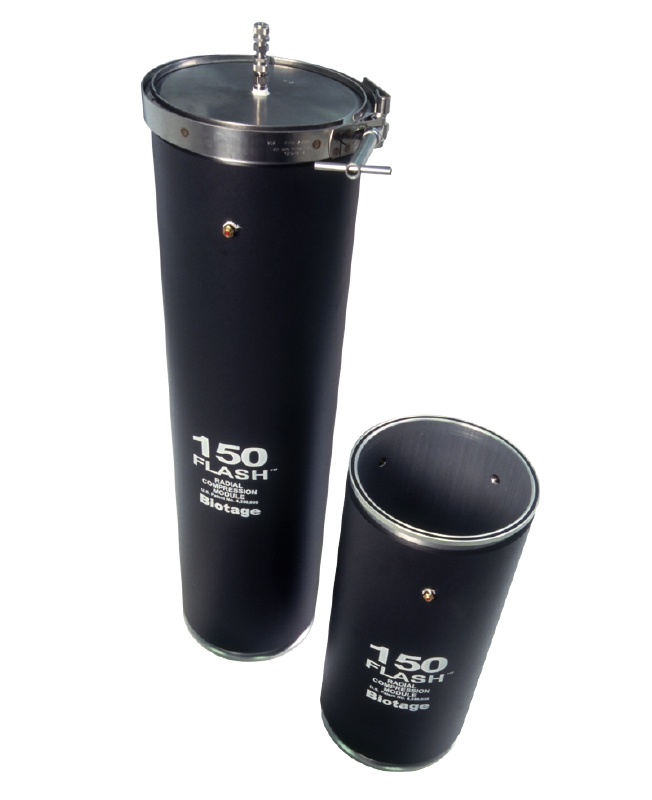

Biotage® Flash 150 systems safely operate at 100 psi enabling fast flow rates and the use of high viscosity solvents. Our proven radial compression technology ensures near zero “wall effects” and channelling inside each column. This maintains the bed’s stability, rendering cleaner, purer fractions in less time and higher overall product yield. Flash 150 cartridges are so-called as they are 150 mm in diameter and routinely operate at flow rates up to 1000 mL/min. These purification systems allow you to quickly scale-up and complete runs, saving hours or even days of purification time.
In a comparison between a Flash 150M cartridge (150 mm x 300 mm) and a 120 mm x 660 mm traditional glass column, fractions were collected in 7.2 hours using the glass column, while the Flash 150M cartridge required just 90 minutes. Additionally, the recovery ratio of product from the Flash 150M system was 4 times that of the glass column. This resulted in a plant saving nearly 4 weeks of development time.

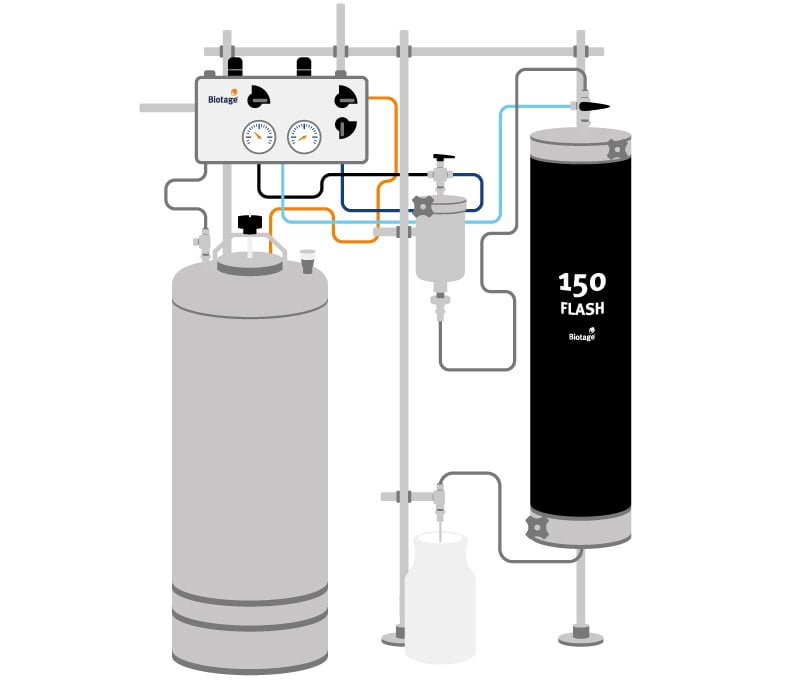

The Biotage® Flash 150 system includes an easy-to-install radial compression module, a fully integrated gas manifold, solvent reservoir, sample injection module (SIM), a start-up kit with all necessary tubing, grounding kit, and a user’s manual. Prepacked cartridges are ordered separately. Flash 150 compression modules are mounted onto robust portable bases (included in the system package), which are fitted with casters for easy mobility.
Part No. | Description | Pack Size | List Price | |
---|---|---|---|---|
SF-022-25151 | Flash 150L system | 1 | Add to quote/cart | |
SF-022-25071 | Flash 150M system | 1 | Add to quote/cart |
Part No. | Description | Pack Size | List Price | |
---|---|---|---|---|
F150L-0445-25155 | Flash 150L Cartridge with Biotage Sfär 60 micron silica,2/pk | 2 | Add to quote/cart | |
F150L-0443-25155 | Flash 150L Cartridge with Biotage Sfär HC silica, 2pk | 2 | Add to quote/cart | |
FT6-2030-25155 | Flash 150L Cartridge with HP-20, 2pk | 2 | Add to quote/cart | |
FT6-2530-25150 | Flash 150L Cartridge with HP-20SS | 1 | Add to quote/cart | |
F150L-0442-25155 | Flash 150L Cartridge with HP-Sphere | 2 | Add to quote/cart | |
FSUL-0401-25150 | Flash 150L Cartridge with HP-Sphere C18 | 1 | Add to quote/cart | |
FPNH-0454-25150 | Flash 150L Cartridge with ISOLUTE Flash-NH2, 1pk | 1 | Add to quote/cart | |
FL0-1118-25150 | Flash 150L Cartridge with KP-C18-HS | 1 | Add to quote/cart | |
FPNH-150L | Flash 150L Cartridge with KP-NH, 1/pk | 1 | Add to quote/cart | |
FK0-1107-25155 | Flash 150L Cartridge with KP-Sil | 2 | 3483 USD | Add to quote/cart |
C1YR-4021-25155 | Flash 150L Cartridge with WAC | 2 | Add to quote/cart | |
F150M-0445-25075 | Flash 150M Cartridge with Biotage Sfär 60 micron silica,2/pk | 2 | 2924 USD | Add to quote/cart |
F150M-0443-25075 | Flash 150M Cartridge with Biotage Sfär HC silica, 2pk | 2 | Add to quote/cart | |
FT6-2530-25070 | Flash 150M Cartridge with HP-20SS, 1pk | 1 | Add to quote/cart | |
F150M-0442-25075 | Flash 150M Cartridge with HP-Sphere | 2 | Add to quote/cart | |
FSUL-0401-25070 | Flash 150M Cartridge with HP-Sphere C18 | 1 | Add to quote/cart | |
FPNH-0454-25070 | Flash 150M Cartridge with ISOLUTE Flash-NH2, 1/pk | 1 | 3509 USD | Add to quote/cart |
FL0-1118-25070 | Flash 150M Cartridge with KP-C18-HS | 1 | Add to quote/cart | |
FPNH-150M | Flash 150M Cartridge with KP-NH, 1/pk | 1 | 3997 USD | Add to quote/cart |
FK0-1107-25075 | Flash 150M Cartridge with KP-Sil | 2 | 2434 USD | Add to quote/cart |
C1YR-4021-25075 | Flash 150M Cartridge with WAC | 2 | Add to quote/cart |
This document illustrates O-rings available for use in Biotage Scale-Up Flash System compression modules.
Essential items to help prepare for your system installation
Flash 75/150/400 Scale-up flash purification cartridges from Biotage can process from 100g to up to 8 kg of material in one batch. The media comes in various flavours within normal phase, reversed phase, and adsorption.
Setting up and running Biotage Flash 150 Large Scale Chromatography System
Part No. | Description | |
---|---|---|
SER-150-IN | Installation and Familiarization Installation and familiarization package | Add to quote |
SER-150-IQOQ | Qualification Add-on a compliance package (IQOQ) | Add to quote |
Biotage offers a variety of service agreements to choose from.
SEL-2EV - Two Channel, Extended Collection Bed, UV Detector
