Extraction of veterinary growth promoters from animal urine using ISOLUTE® HYDRO DME+ prior to UPLC-MS/MS analysis

For research use only. NOT for use in diagnostic procedures.

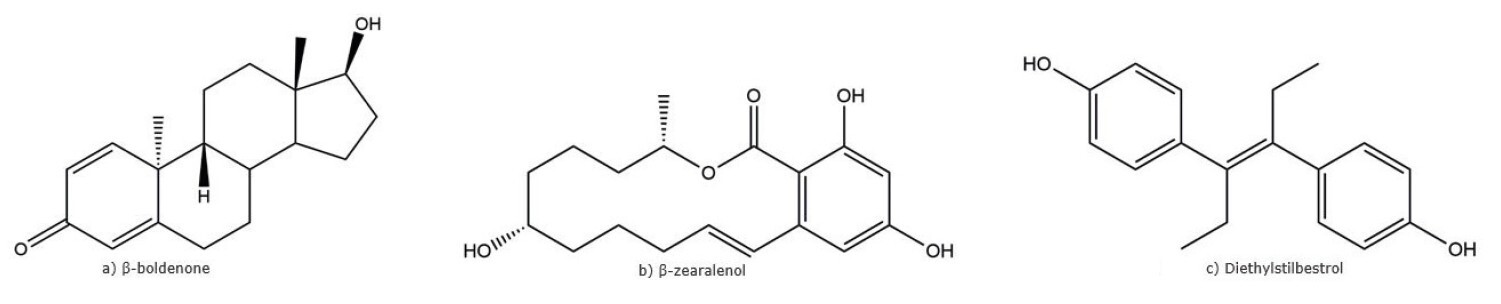

Figure 1. Representative veterinary growth promoter chemical structures.

This application note describes the extraction of 18 growth promoters (steroids, resorcylic acid lactones and stilbenes) using ISOLUTE® HYDRO DME+ prior to LC/MS analysis.

ISOLUTE HYDRO DME+ dual mode extraction cartridges and plates provide extremely efficient removal of matrix components and hydrolysis enzymes from urine samples, using a simple flow- through workflow. This application note provides an effective and efficient ISOLUTE HYDRO DME+ procedure using cartridge and 96-well plate formats. This simple sample preparation delivers clean extracts and recoveries greater than 80% for most analytes. RSDs are typically less than 5% and lower than 10% for all analytes. LLOQ are typically less than the estimated linear range minima of 0.4 ng mL-1, using a total load volume of 75 µL of urine.

Analytes

ß-trenbolone, α-trenbolone, ß-boldenone, α-boldenone, ß-nortestosterone, α-nortestosterone, methylboldenone, methyltestosterone, 16-ß-hydroxystanozolol, taleranol, zeranol, ß-zearalenol, α zearalenol, zearalenone, zearalanone, diethyl- stilbestrol, dienestrol, hexestrol

Internal standards

N/A

Sample preparation procedure

Format

ISOLUTE® HYDRO DME+ 400 mg cartridges, part number 970-0040-BZ
ISOLUTE® HYDRO DME+ 400 mg plate, part number 970-0400-PZ01

Matrix preparation

Hydrolyze 75 µL animal urine as follows: dilute 1:1 (v./v) with 200 mM ammonium acetate pH 5.2 containing 10 µL per mL of glucuronidase H-2 ex. Helix pomatia. Incubate at 60 °C for 2 hours. Cool to room temperature.

Sample loading

Load 150 µL of hydrolyzed sample directly to ISOLUTE® HYDRO DME+ cartridge/well. Add 900 µL of acetonitrile and mix with 5x aspirate/dispense steps.

Analyte extraction

Using a Biotage® Pressure+ 48 or 96 Positive Pressure Manifold, apply approximately 5 psi pressure. Collect the extract.

Post elution and reconstitution

Evaporate the extract at 40 °C and reconstitute in 0.1% formic acid in 50% aq MeOH (200 µL).

UHPLC conditions

Instrument

Shimadzu Nexera UHPLC

Column

ACE UltraCore Super C18 2.5 µm 100 x 2.1 mm (CORE-25A-1002U), VWR International (Lutterworth, UK)

Mobile phase

A: 0.5 mM ammonium acetate, 0.01% acetic acid, 30% MeOH (aq) B: 0.5 mM ammonium acetate, 0.01% acetic acid, 95% MeOH (aq)

Flow rate

0.5 mL min

Injection volume

10 μL

Column temperature

45 °C

Table 1. Gradient and divert valve settings

Table 2. Typical retention times.

MS conditions

Instrument

Sciex Triplequad 5500 operating in dual polarity ESI mode

Source temperature (TEM)

600 ^oC

Curtain gas (CUR)

35

Source gas 1 (GS1)

60

Source gas 1 (GS2)

50

Table 3. MS parameters for target analytes.

Results

Recovery

Extraction recoveries were determined at 1ng mL-1, equivalent to 75 pg when extracting 150 µL of pre treated hydrolyzed urine from four different species: bovine, equine, ovine and porcine.

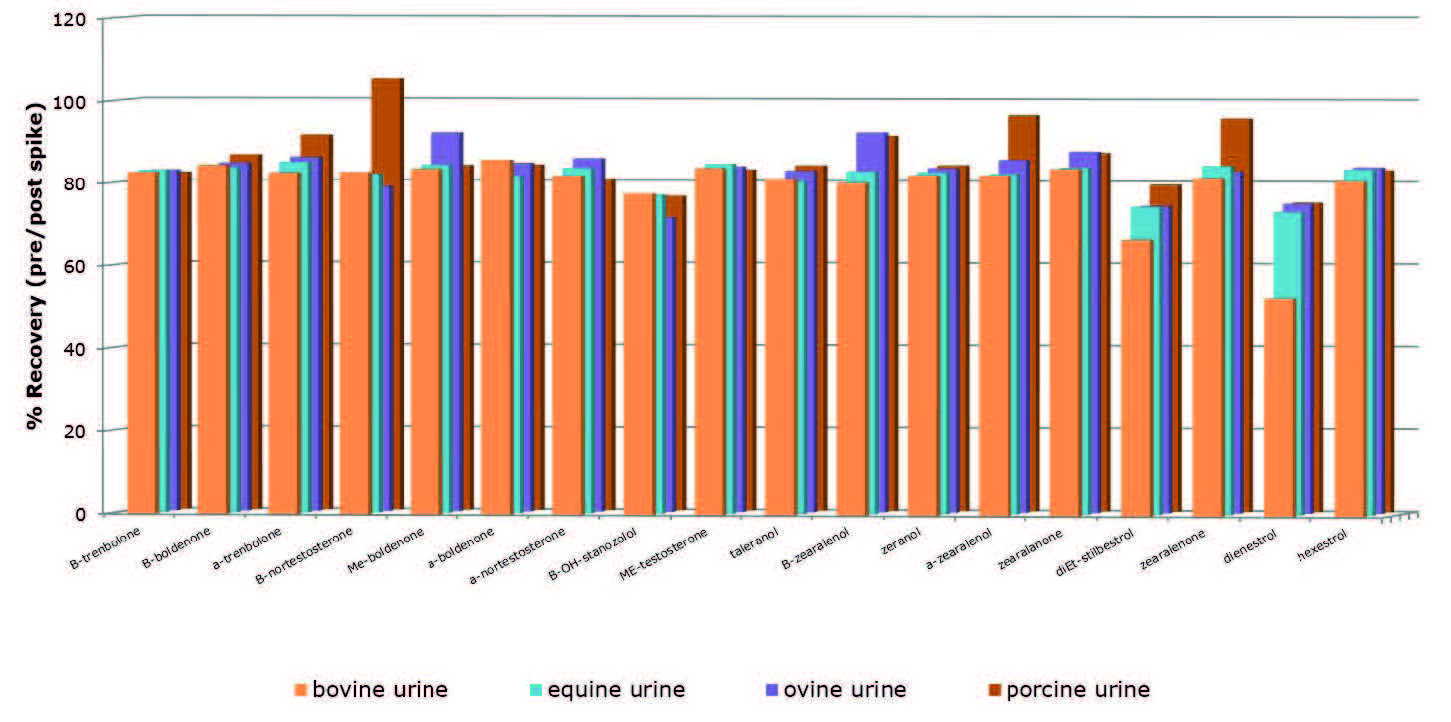

Figure 2. Representative analyte recoveries using an optimized ISOLUTE® HYDRO DME+ protocol (75 µL of urine extracted).

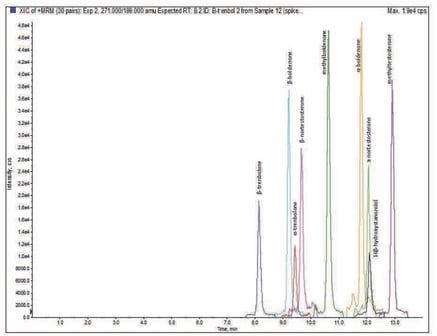

Figure 3. Representative +ESI target analyte chromatography (1 ng mL-1 spike).

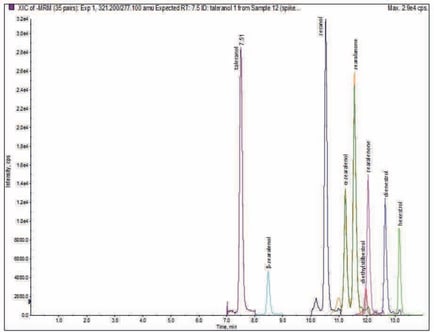

Figure 4. Representative -ESI target analyte chromatography (1 ng mL-1 spike).

Linearity

Extraction linearity was determined between 0.4 and 10 ng mL-1 from a mixed stock spiked into bovine urine and serially diluting in bovine urine. Each calibration level was extracted in four replicates. Figure 4 demonstrates representative calibration curves. Table 4 details linearity performance and associated LOQ for each analyte. Good linearity was observed for all analytes typically delivering r² values greater than 0.999.

Table 4. Analyte calibration curve r2 and LOQ performance.

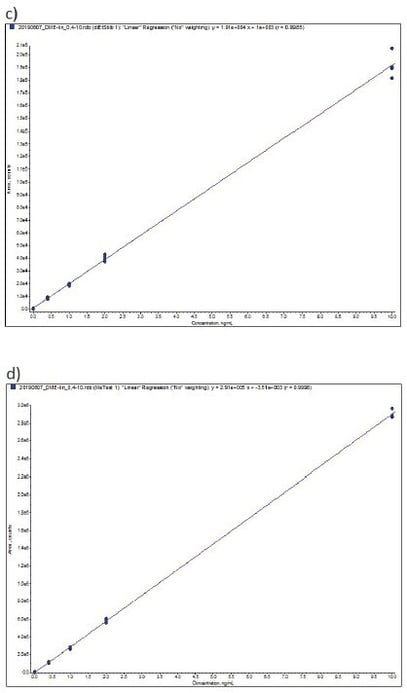

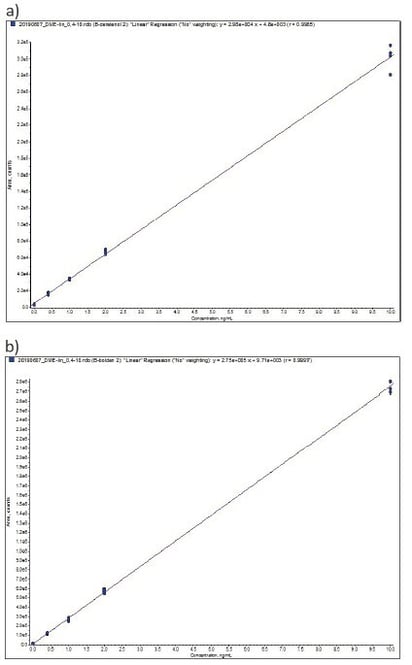

Figure 5. Representative Calibration curves (0.4 to 10 ng mL-1 extracted from bovine urine) a) β-zearalenol, b) β-boldenone, c) diethylstilbestrol, d) methyltestosterone.

Chemicals and reagents

Water (18.2 MΩ.cm) was drawn fresh daily from a Millipore Direct-Q5 water purifier (Watford, UK).

Organic solvents (methanol and acetonitrile) were HPLC or LC-MS grade and purchased from Honeywell Research Chemicals (Bucharest, Romania).

Acetic acid (LC-MS) was purchased from Fisher Scientific UK (Loughborough, UK).
Ammonium acetate (reagent and LC-MS grade), formic acid (LC-MS grade) and ß-glucuronidase (Type HP-2, aqueous solution ≥100,000 units/mL) were purchased from Sigma- Aldrich Company Ltd. (Gillingham, UK).

Analytical standards were purchased from Sigma-Aldrich Company Ltd. (Gillingham, UK) or Toronto Research Chemicals (Toronto, Canada)

200 mM ammonium acetate pH 5.2 (aq) was prepared by dissolving 15.42 g of reagent grade ammonium acetate in 1 L deionized water, the pH was adjusted using concentrated formic acid.

Buffered ß-glucuronidase hydrolysis solution was prepared fresh daily by diluting 150 µL ß-glucuronidase solution in 14.85 mL 200 mM ammonium acetate pH 5.2 (aq) and vortex- mixing thoroughly.

50% methanol (aq), 0.1% formic acid (reconstitution solution) was prepared by adding 50 mL methanol to 50 mL deionised water, followed by 100 µL concentrated LC-MS grade formic acid.

Mobile phase A (0.5 mM ammonium acetate (aq), 0.01 % acetic acid) was prepared by dissolving 38.5 mg LC-MS grade ammonium acetate in 500 mL deionized water, adding 100 µL of concentrated acetic acid and making up to 1 L with deionized water.

Mobile phase B (0.5 mM ammonium acetate (methanol), 0.01 % acetic acid) was prepared by dissolving 38.5 mg LC-MS grade ammonium acetate in 500 mL LC-MS grade methanol, adding 100 µL of concentrated acetic acid and making up to 1 L with
LC-MS grade methanol.

Additional information

Animal urine matrix samples were kindly donated by the State Laboratory, Celbridge, Ireland.
