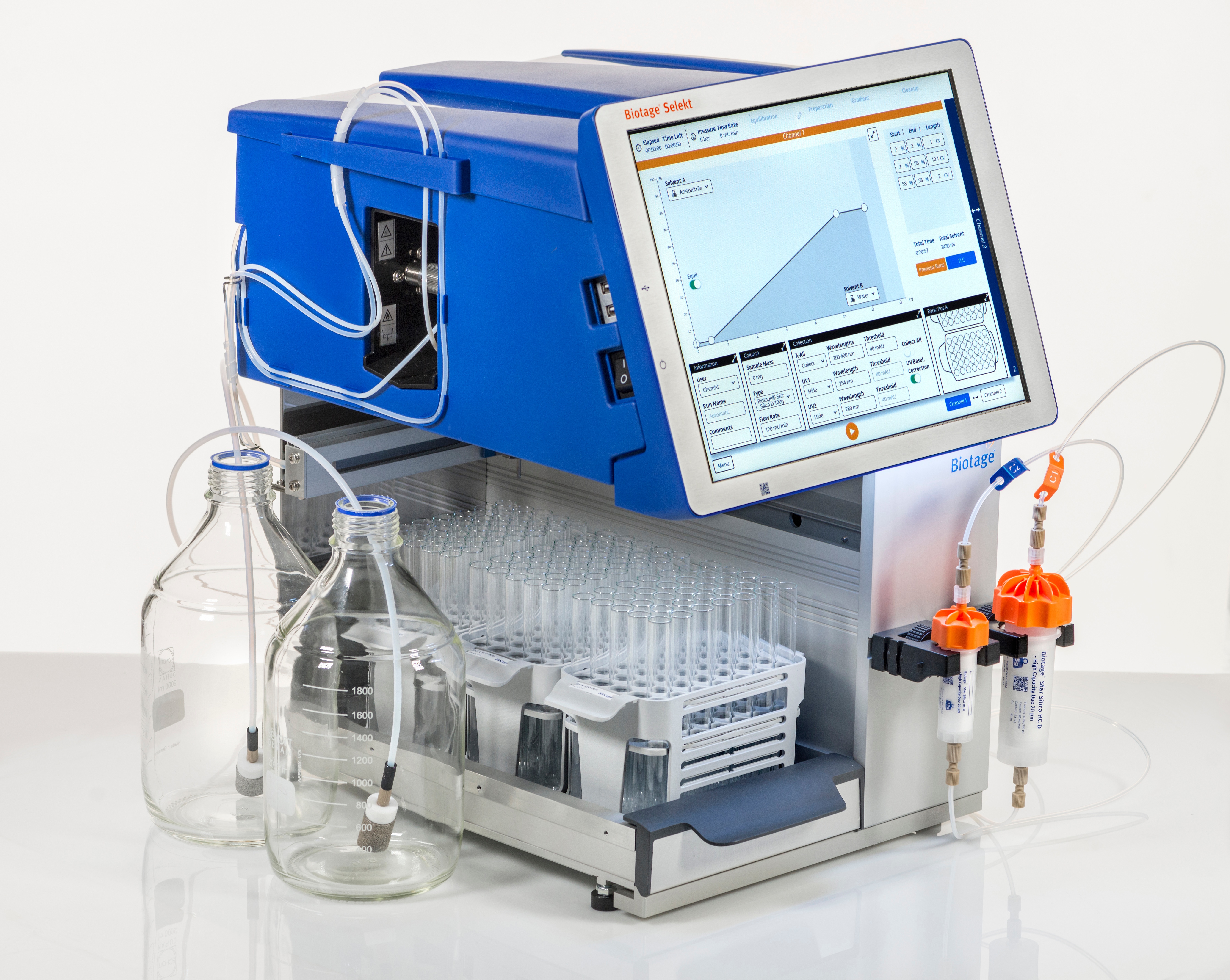

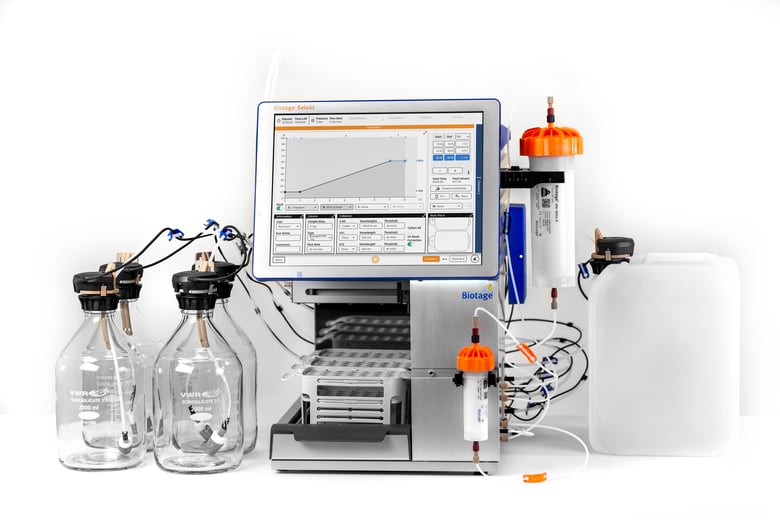

Biotage^® Selekt System

Automated flash chromatography system

High-performance, versatile flash purification system designed for broad requirements in drug discovery and research laboratories.

Request a quote

Accessories & Spare Parts

One system, broad capabilities

With a 300 mL/min flow rate, 30 bar pressure, and capacity for columns up to 1.85 kg, Biotage® Selekt is a high-performance flash purification system, offering exceptional versatility. It features UV/Vis detection, four solvent lines with binary gradient support, and two column lines, supporting automatic switching between normal and reversed phase workflows.

All documents

Versatile by choice

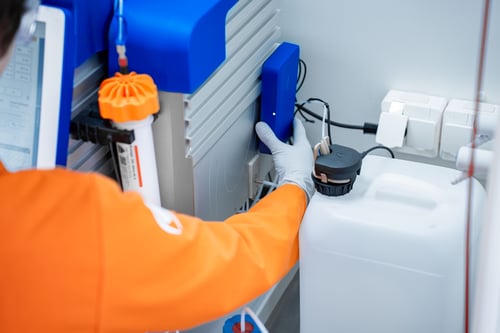

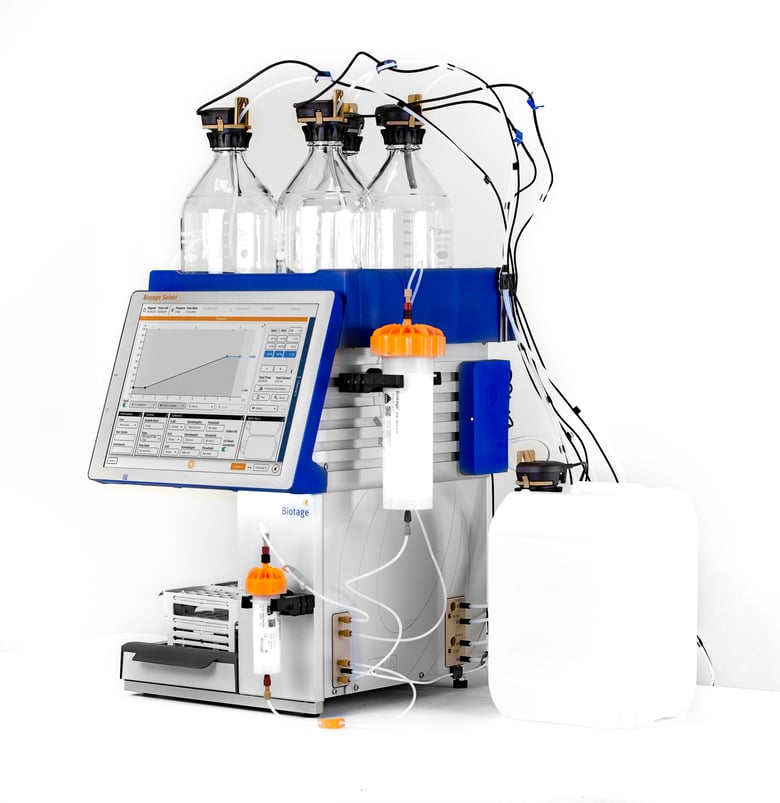

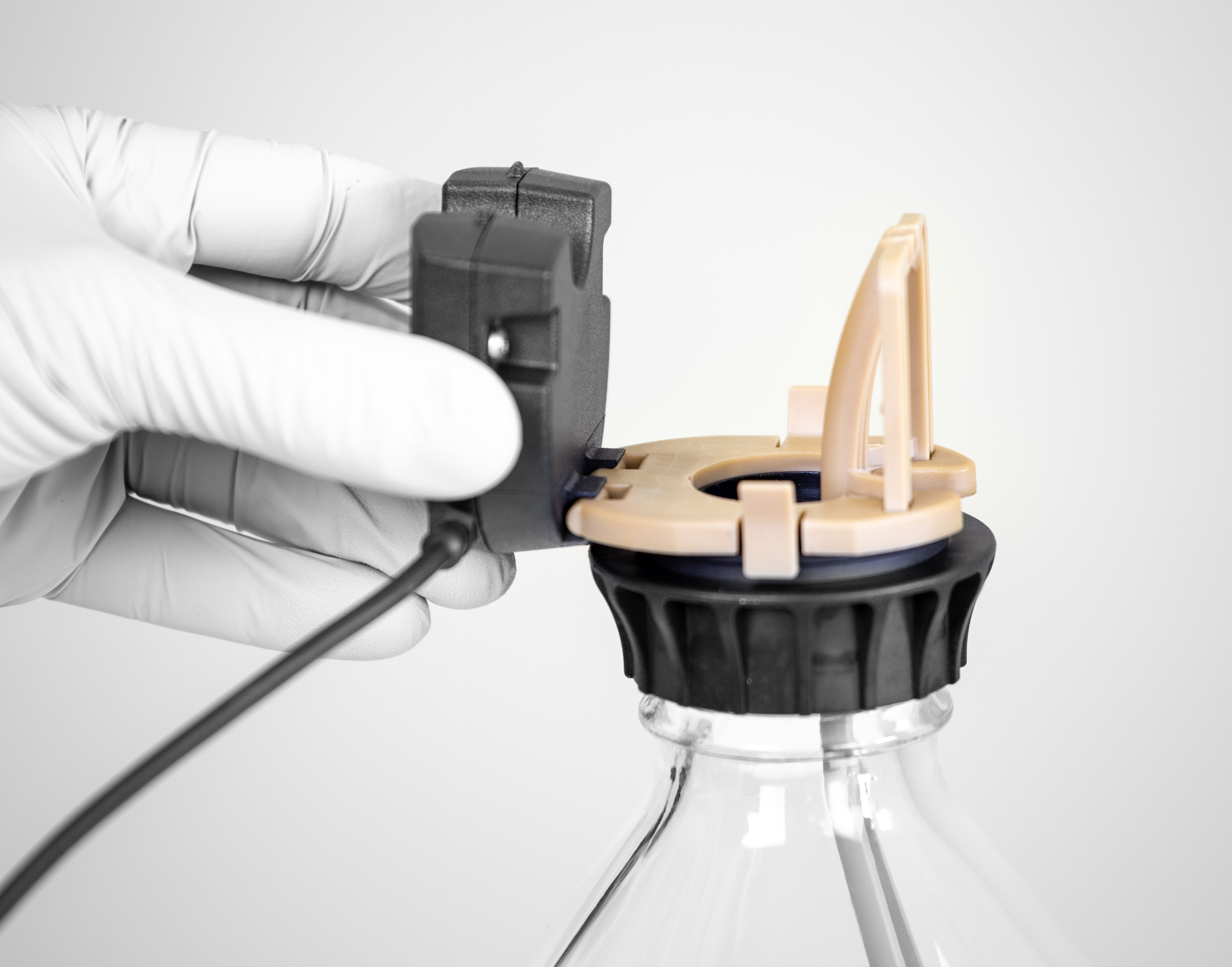

Biotage® Selekt is a modular system offering advanced features like a QR column code scanner, rack handling, RFID, and network access. It can be easily upgraded with add-ons like remote monitoring, liquid level sensors, and an evaporative light-scattering detector.

Learn more

Simple by design

The touchscreen provides intuitive access to software, giving you full control of purification with just a few clicks. Advanced tools, including Gradient Optimization, Bypass Tray Collection, Queue Function, Initial Waste, Peak Hold, and 3D visualization, further enhance your workflow.

Learn more

Capacity meets performance: from 5 g to 1.85 kg

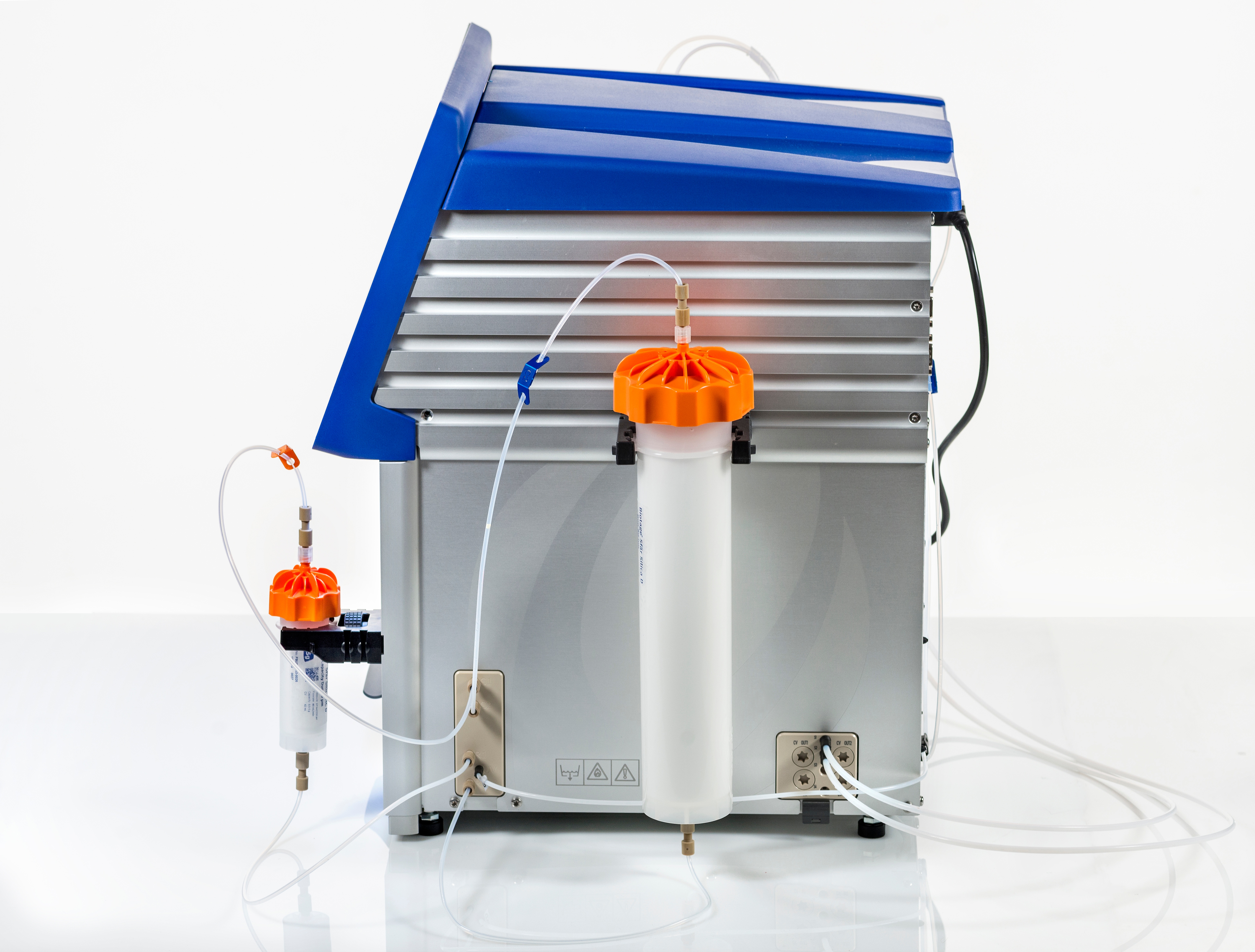

Biotage® Selekt routinely handles Biotage® Sfär columns from 5 g to 340 g. With an added safety valve, it can accommodate columns up to 1.85 kg. Biotage® Sfär offers exceptionally high loading, allowing you to select a smaller column size for fast separations and minimal solvent consumption.

Learn more

Specifications

GENERAL SYSTEM SPECIFICATIONS

LOCATION A laboratory fume hood with the capacity to handle leakage of solvents and provide suitable airflow to prevent the build-up of flammable vapors.

AMBIENT TEMPERATURE Operating: 15–32 °C (59–90 °F). Storage and transportation: -25–60 °C (-13–140 °F).

HUMIDITY 20–95% RH (non-condensing).

ALTITUDE Operation: up to 2000 m above sea level.

POLLUTION DEGREE The system shall be installed in a level 2 environment in accordance with EN 60664-1.

ELECTRICAL SUPPLY 100–127, 220–240 VAC, 50/60 Hz. Connect only to a grounded outlet.

FUSES T4A-250 VAC, P/N 411916 (2 required).

MAX POWER CONSUMED 300 VA.

FLUID PATH (WETTED) MATERIALS The wetted parts of the system consist of stainless steel, FFKM, PEEK, PP, PE, FEP, PTFE, silica,carbon fiber filled PTFE, and fused silica, which are not affected by common chromatographic solvents.

WEIGHT 23–25 kg (50–54 lbs.) depending on the system configuration

DIMENSIONS Footprint: (W x D) 335/550 mm x 393 mm (13.2/21.7” x 15.5”). The width depends on using one or two collection trays. Height: 545 mm (21.5”) excluding secondary solvent containment.

INTERFACES 15.0” (1024 x 768 px) solvent stable TFT LCD touch screen.

PORTS Ethernet port, 4 USB ports, 2 D-Sub 9-pin ports, and AUX port.

DATA ENTRY Touchscreen or USB connection to mouse/keyboard.

SOFTWARE UNIX based Java interface with full on-screen QWERTY keyboard.

CERTIFICATION CE and FCC marked. CB and NRTL certified.

OPERATIONAL SYSTEM SPECIFICATIONS

COLUMN CHANNELS Two

SOLVENT SUPPLY A maximum of 4 x 5 liter reservoirs on the optional secondary solvent containment. Larger reservoirs than 5 liters must be placed elsewhere. Note: To be compliant with the secondary containment regulations, do not use containers larger than 4 liters.

MAX NUMBER OF FRACTIONS 144 fractions with no rack change (288 with two collection trays) using 13 x 100 mm racks.

MAX TOTAL FRACTION VOLUME 3,840 mL with no rack change (7,680 mL with two collection trays), 480 mL bottle racks.

RACK TYPES 13 x 100 mm, 16 x 100 mm, 16 x 150 mm, 18 x 150 mm, 25 x 150 mm, 120 mL, 240 mL, and 480 mL.

INTERNAL DETECTOR WAVELENGTH 200–400 nm (UV) or 198–810 nm (UV-VIS). Amplitude range: 0 to 6400 mAU (Absorbance Units); accuracy of ±5 mAU.

FLOW RATE RANGE 1–300 mL/min, in 1 mL/min increments.

PRESSURE RANGE 0–30 bar (0–3000 kPa; 0–435 psi).

GRADIENT PRECISION ±2%.

Biotage® Selekt Family Brochure

Service Offerings

Response Time (in days)

3 days
5 days

Yearly Maintenance

Extended Warranty coverage (in years)

2 Years
3 Years

Compliance need

Part No.	Description
SER-SEL-FYMP	First Year Maintenance Plan First year coverage package that includes installation and familiarization, preventative maintenance and a 3 day response time	Add to quote
SER-SEL-IN	Installation and Familiarization Installation and familiarization package	Add to quote
SER-SEL-EXW	Extended Warranty Add-on a 12-month extension of the instrument warranty	Add to quote
SER-SEL-WPL	5 Year Warranty Plan Extended warranty for 5 years that includes annual PM's	Add to quote

Service Agreements

Biotage offers a variety of service agreements to choose from.

Find out more here

Looking for something else?

Our 1-Point-Support™ team is here to help you.

Part No.	Description
SEL-2SV	Two Channel, Single Collection Bed, UV Detector
SEL-2SW	Two Channel, Single Collection Bed, UV-VIS Detector
SEL-2EV	Two Channel, Extended Collection Bed, UV Detector
SEL-2EW	Two Channel, Extended Collection Bed, UV-VIS Detector
