ISOLUTE® Phase Separators are used to separate aqueous and chlorinated solvents following liquid-liquid extraction. The proprietary filtration device allows the flow of the organic solvent but holds up the aqueous layer (for up to 24 hours).
ISOLUTE Phase Separators have been designed to rapidly separate chlorinated solvents from aqueous phases, under gravity.
The phase separators are available in a comprehensive range of column sizes (3, 6, 15, 25, 70 and 150 mL) and in convenient packages of 25-100 (depending on size).
Unlike other phase separation devices, no vacuum or positive pressure is required – the separation is achieved under gravity. The phase separator is impervious to aqueous solvents, but allows the passage of water immiscible solvents of a higher density than water.
There are no moving parts, nothing to prime, its all achieved by hydrophobic/hydrophilic interactions, the cartridges arrive ready to use and are compatible with a wide variety of solvents.
The compound is partitioned, due to differences in solubility, between two immiscible liquids. The lower organic phase can pass through the frit, the upper aqueous phase physically cannot. There is an automatic cut-off at the organic/aqueous interface.

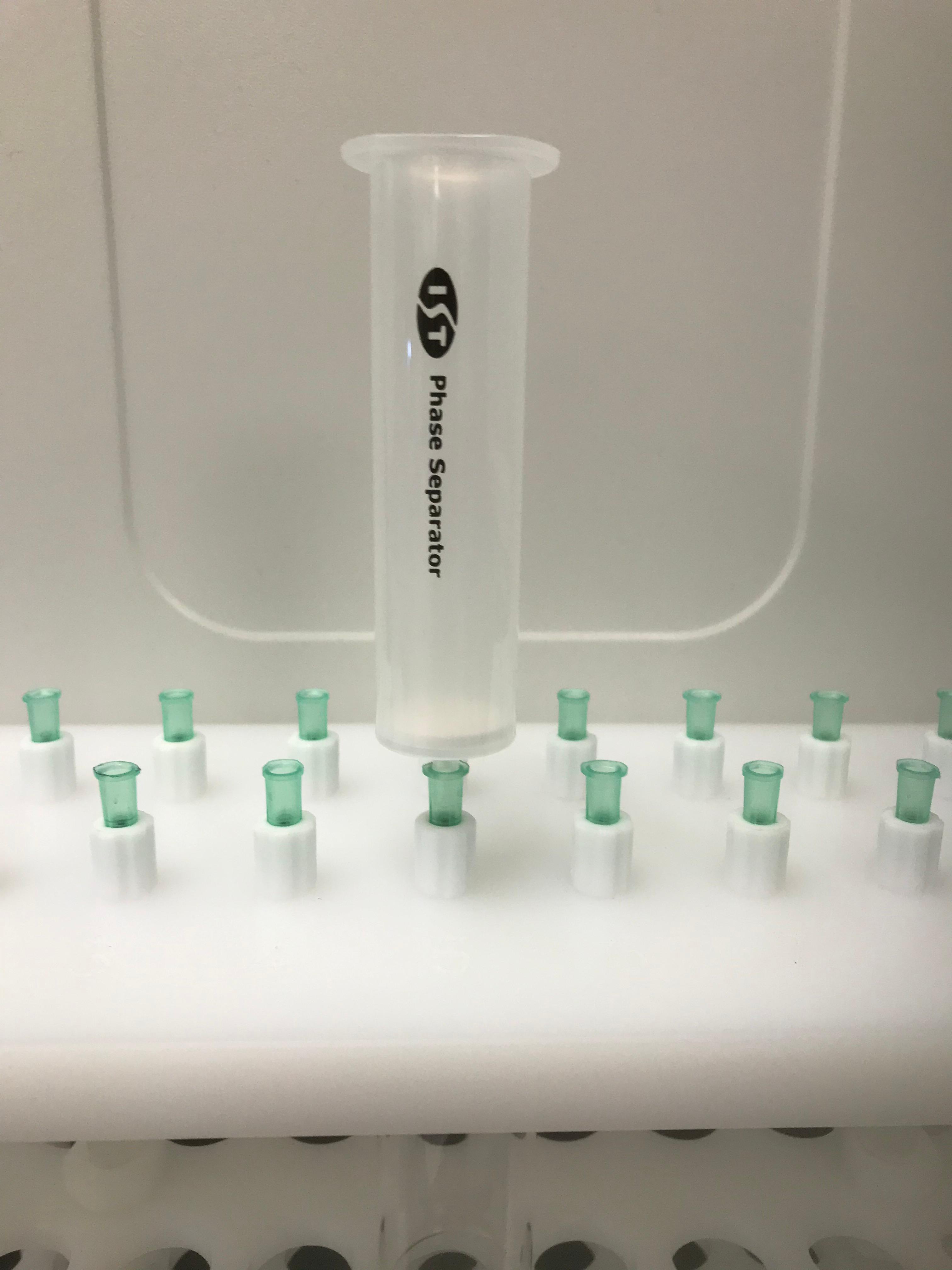

Phase Separators are designed to stand alone, working by unattended operation. Just open the lower tap (optional accessory) and walk away, the cut off is automatic.
Save time, reduce solvent, Phase Separator tubes are easier to store than glass sep funnels, and are geometrically designed to line up on a FlashVac or rack system, thus enabling the chemist to carry out multiple extractions in parallel. After-use, there is no need to waste valuable time and detergent / solvent, by re-washing, the disposable format allows for a very fast turn around and cycle time for further exactions.
Phase Separators comply with 6 of the key principles of Green Chemistry:
Part No. | Description | Pack Size | List Price | |
---|---|---|---|---|
121-9650 | ISOLUTE® Array 24 | 1 | 186 USD | Add to quote/cart |
121-9660 | ISOLUTE® Array 24 Sealing Caps | 50 | 20 USD | Add to quote/cart |
120-1920-T | ISOLUTE® ARRAY Phase separator loose wells 2 mL | 100 | 134 USD | Add to quote/cart |
120-1920-TP | ISOLUTE® ARRAY PHASE SEPARATOR PLATE 2ML | 1 | 175 USD | Add to quote/cart |
120-1906-D | ISOLUTE® Phase separator 15 mL | 100 | 215 USD | Add to quote/cart |
120-1909-J | ISOLUTE® Phase separator 150 mL | 25 | 227 USD | Add to quote/cart |
120-1903-B | ISOLUTE® Phase separator 3 mL | 100 | 175 USD | Add to quote/cart |
120-1903-BG | ISOLUTE® Phase separator 3 mL tabless | 100 | 181 USD | Add to quote/cart |
120-1905-CG | ISOLUTE® Phase separator 6 mL tabless | 100 | 234 USD | Add to quote/cart |
120-1907-E | ISOLUTE® Phase separator column 25 mL | 100 | 281 USD | Add to quote/cart |
120-1905-C | ISOLUTE® Phase separator column 6 mL | 100 | 215 USD | Add to quote/cart |
120-1910-P05 | ISOLUTE® Phase separator plate, fixed well | 5 | 421 USD | Add to quote/cart |
120-1910-P01 | ISOLUTE® PHASE SEPARATOR PLATE,FIXED WELL | 1 | 101 USD | Add to quote/cart |
120-1901-A | ISOLUTE® Phase separator, 1 mL | 100 | 146 USD | Add to quote/cart |
120-1908-F | ISOLUTE® Phase separator, 70 mL | 50 | 181 USD | Add to quote/cart |
