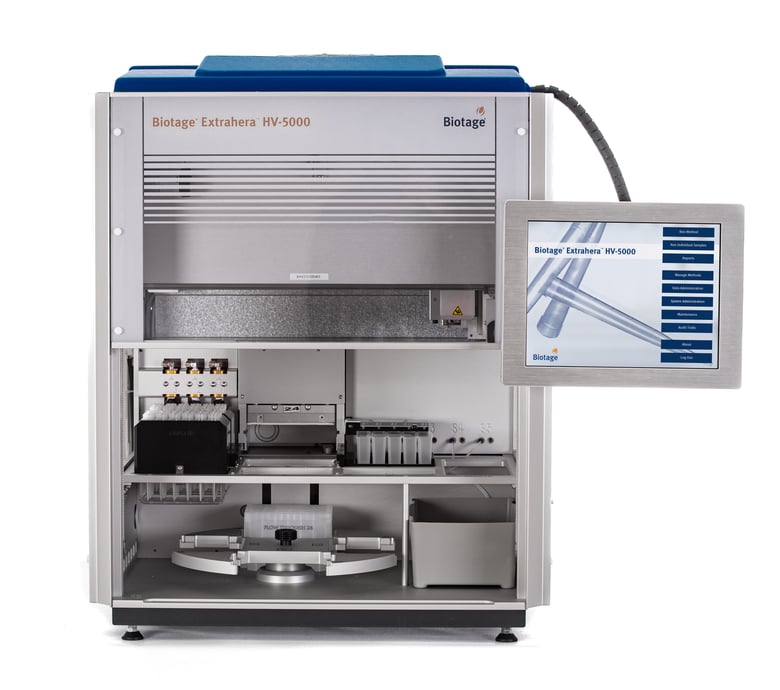

Biotage® Extrahera™ HV-5000

Automated Sample Preparation Workstation for High Volume Samples

The new Biotage® Extrahera™ HV-5000, is a GLP capable, automated sample preparation workstation dedicated to column-based sample prep with support for classical 3-, 6-, 10- and 15-mL SPE and SLE column consumable formats.

Request a quote

Consumables & Accessories

Benefits

The Biotage® Extrahera™ HV-5000 workstation is designed for high volume samples, utilizing a 4-channel pipette head that can aspirate and dispense from 250 – 5000 uL per channel.

With its small footprint, intuitive software, and robust positive pressure system for uniform processing of all samples, the HV-5000 will take your sample prep to new heights.

Consumables & Accessories

Sample Prep in Essence

The intuitive, user-friendly software has been specifically based on sample prep workflow to allow all novice and experts users the ability to operate with ease. This ensures the HV-5000 can seamlessly integrate with daily lab routine without the need for advanced training.

Learn more

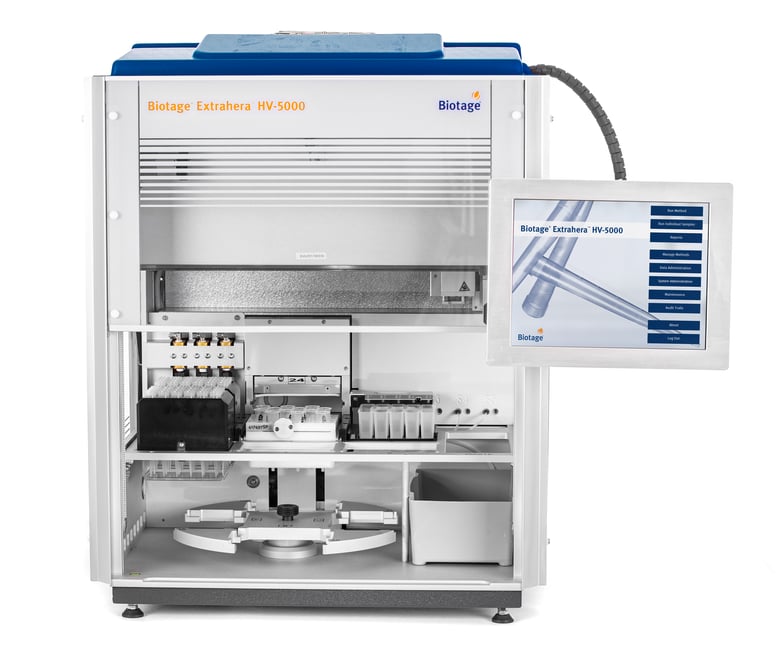

Follows Where You Go

Do you need to place your workstation on the bench? Or maybe the fume hood? Or perhaps your mobile lab?

The small footprint and integrated touchscreen means the HV-5000 can go wherever you want it to!

Learn more

All About Pipetting

The SMART loading feature prevents the aspiration of air and ensures there won't be any sample overflow by making the pipette descend into the sample tube at a rate equal to the rate of sample aspiration.

Learn more

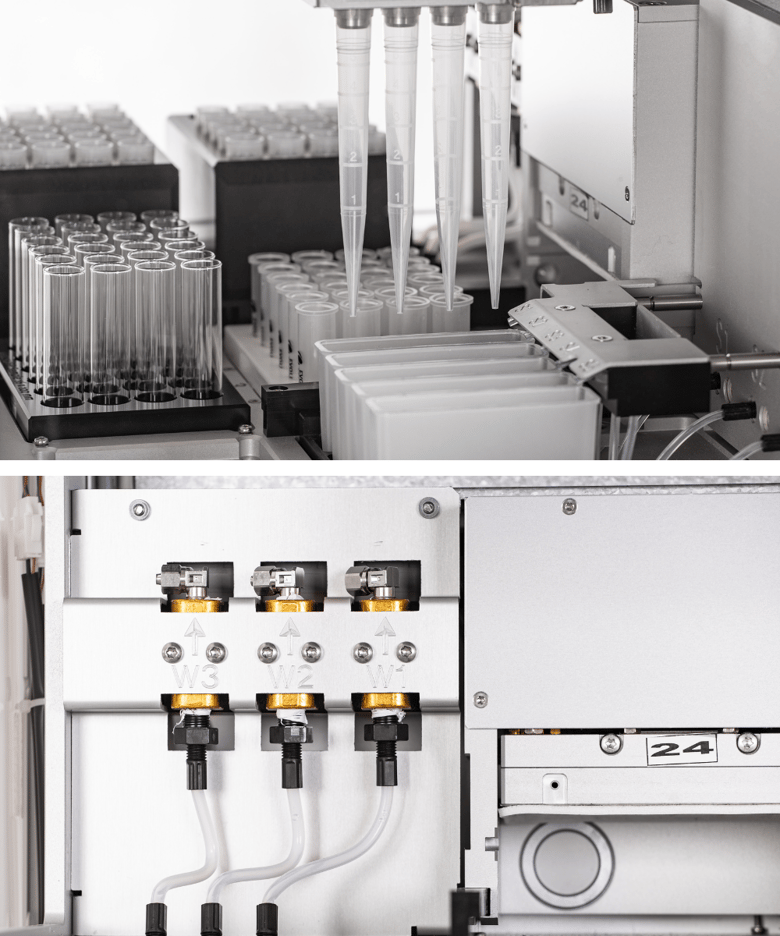

Enhanced Waste Management

Wish you could easily separate your aqueous, organic and chlorinated waste? The HV-5000 has got you covered!

You can independently control each of the three waste valves within a method and decrease solvent disposal costs.

Learn more

Part No.	Description
417002	Biotage® Extrahera™ HV-5000

Specifications

LIQUID HANDLING

PIPETTE PUMP CAPACITY 250-5000 μL

PIPETTING SPECIFICATIONS For the 5000 μL pipette tip (P/N 417007): At 250 μL: ± 2.0% accuracy and 3.0% CV; At 500 μL: ±1.5% accuracy and 2.0% CV; At 1000 μL: ±1.0% accuracy and 1.5% CV; At 5000 μL: ±0.5% accuracy and 1.0% CV

SOLVENT CAPACITY 5 solvent pumps with automatic feed in from external reservoirs, with additional capacity for an extra 5 manually filled solvent reservoirs (5x 20 mL, 5x 40 mL, or 5x 100 mL)

PRESSURE UNIT Positive Pressure Unit: Processing: 0-5 Bar (0.1 Bar Increments); Plate Dry: 5 Bar at 600 mL/min

SAMPLE PROCESSOR

FORMAT 48-position extraction racks for 3 mL (tabless) columns; 24-position extraction racks for 3 and 6 mL (tabless) columns; 12-position extraction racks for 10 mL (tabless) columns; 12-position extraction racks for 15 mL (tabless) columns

PLATE POSITIONS 6 position upper deck used for sample, extraction plates, pipette tips and solvents. 4 positions on lower deck carousel for multiple elution and waste.

DISPOSABLE TIPS Disposable Sample Tips (Position 2): 5000 μL clear tips; Disposable Solvent Tips (Position 1): 5000 μL clear tips; Disposable Solvent Tips (Position 6): 5000 μL clear tips

SYSTEM REQUIREMENTS

TEMPERATURE Operating Temperature: 18°C to 32°C. Storage and transportation temperature: -25 °C to 60 °C

HUMIDITY 10 to 90% RH

POWER SUPPLY 100 to 240 V, 50/60 Hz

FUSES T4A at the power inlet (2 required)

MAXIMUM POWER CONSUMED 300 VA

PRESSURIZED AIR SUPPLY >5 L/min (0.18 cubic feet/min), 6 ± 0.2 bar (0.6 ± 0.02 MPa; 87 ± 3 psi)

INERT GAS SUPPLY AIR port requirements: >5 L/min (0.18 cubic feet/min), 6 ± 0.2 bar (0.6 ± 0.02 MPa; 87 ± 3 psi). N2 port requirements: 1 L/min (0.04 cubic feet/min) during processing and 70 L/min (2.5 cubic feet/min) during plate dry, 6 ± 0.2 bar (0.6 ± 0.02 MPa, 87 ± 3 psi)

VACUUM SUPPLY Partial pressure range: < 500 mbar (50 kPa; 7 psi) Flow rate: ≥ 8.3 L/min (0.29 cubic feet/min)

WEIGHT 80 kg (176 lbs)

DIMENSIONS (WXDXH) Without touch screen: 610 x 510 x 790 mm (24.0” x 22.1” x 31.1”). With touch screen: 860 x 570 x 790 mm (33.8” x 22.4” x 31.1”)

MAX SOUND LEVEL 65 dB(A)

INTERFACES

TOUCH SCREEN 12” Capacitive Touch

ETHERNET LAN Complies with IEEE 802.3 (ANSI 8802-3)

USB USB 2.0

OTHER

GLP GLP Software Ready

CERTIFICATIONS CE, CSA certified

Service Offerings

Response Time (in days)

3 days
5 days

Yearly Maintenance

Extended Warranty coverage (in years)

2 Years
3 Years

Compliance need

Part No.	Description
SER-EX-FYMP	First Year Maintenance Plan First year coverage package that includes installation and familiarization, preventative maintenance and a 3 day response time	Add to quote
SER-EX-FYMP-Q	First Year Maintenance Plan with Qualification First year coverage package that includes installation with qualification and familiarization, preventative maintenance and a 3 day response time	Add to quote
SER-EX-IN	Installation and Familiarization Installation and familiarization package	Add to quote
SER-EX-EXW	Extended Warranty Add-on a 12-month extension of the instrument warranty	Add to quote
SER-EX-IQOQ	Qualification Add-on a compliance package (IQ/OQ) for system-only	Add to quote
SER-EX-GLP-IQOQ	Qualification Add-on a compliance package (IQ/OQ) for GLP software	Add to quote
